74VHC9152FT - Toshiba

Description: Buffers & Line Drivers Pb-F Schmitt Inverter Buffer VCC: 2.0-5.5V

Download 74VHC9152FT Model

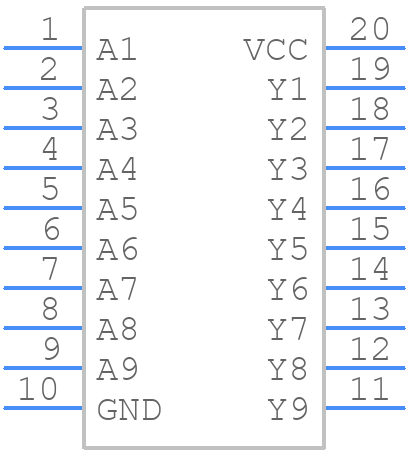

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74VHC9152FT - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - P-TSSOP20-0044-0.65-001
click to zoom
3D Models
74VHC9152FT - Toshiba  - 3D model - Small Outline Packages - P-TSSOP20-0044-0.65-001
click to zoom

74VHC9152FT Details

  • Manufacturer Part Number:

    74VHC9152FT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Family:

    AHC/VHC/H/U/V

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    INVERTER

  • Max I(ol):

    0.008 A

  • Number of Functions:

    9

  • Number of Inputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Power Supply Current-Max (ICC):

    0.08 mA

  • Prop. Delay@Nom-Sup:

    13 ns

  • Propagation Delay (tpd):

    19.5 ns

  • Schmitt Trigger:

    YES

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

74VHC9152FT Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74VHC9152FT is 2.0V to 5.5V.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow the thermal management guidelines provided in the datasheet, including keeping the junction temperature (Tj) below 150°C and using a heat sink if necessary.
  • The maximum clock frequency supported by the 74VHC9152FT is 100 MHz.
  • Yes, the 74VHC9152FT is compatible with 3.3V systems, but it is recommended to follow the voltage derating guidelines provided in the datasheet to ensure reliable operation.
  • It is recommended to follow the power-up and power-down sequencing guidelines provided in the datasheet to ensure reliable operation and prevent latch-up or other issues.
