74VHCV245FT - Toshiba

Description: Octal Transceiver, TSSOP20B

Download 74VHCV245FT Model

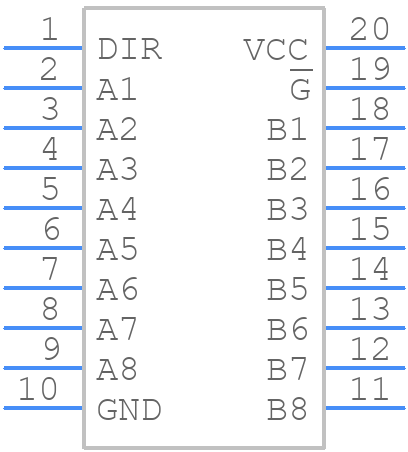

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74VHCV245FT - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - P-TSSOP20-0044-0.65-001
click to zoom
3D Models
74VHCV245FT - Toshiba  - 3D model - Small Outline Packages - P-TSSOP20-0044-0.65-001
click to zoom

74VHCV245FT Details

  • Manufacturer Part Number:

    74VHCV245FT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Family:

    AHC/VHC/H/U/V

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Logic IC Type:

    BUS DRIVER

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Propagation Delay (tpd):

    18 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

74VHCV245FT Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74VHCV245FT is 4.5V to 5.5V.
  • To ensure signal integrity, use a low-impedance PCB design, minimize trace lengths, and use termination resistors as needed to reduce signal reflections.
  • While the 74VHCV245FT is specified for 5V operation, it can be used in a 3.3V system, but the output voltage will be reduced, and the device may not meet all specifications.
  • The maximum clock frequency supported by the 74VHCV245FT is 100 MHz.
  • To ensure proper operation, power up the VCC pin before applying any input signals, and power down the VCC pin after all input signals have been removed.
