74VHCV541FT - Toshiba

Description: Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS Automotive 20-Pin TSSOP-B T/R

Download 74VHCV541FT Model

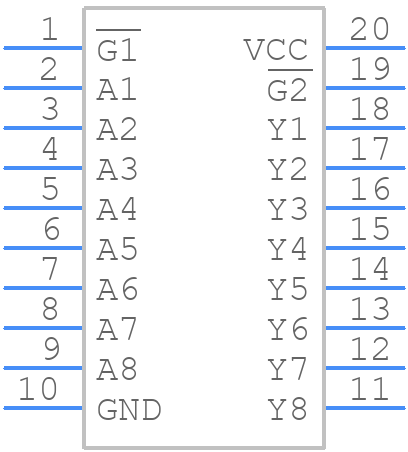

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74VHCV541FT - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP20B_1
click to zoom
3D Models
74VHCV541FT - Toshiba  - 3D model - Small Outline Packages - TSSOP20B_1
click to zoom

74VHCV541FT Details

  • Manufacturer Part Number:

    74VHCV541FT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    AHC/VHC/H/U/V

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.016 A

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Inputs:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    100 mA

  • Prop. Delay@Nom-Sup:

    8 ns

  • Propagation Delay (tpd):

    18.5 ns

  • Schmitt Trigger:

    YES

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

74VHCV541FT Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74VHCV541FT is 1.65V to 5.5V.
  • It is recommended to power up the VCC pin first, followed by the input signals, and then the output enable (OE) pin. During power-down, the OE pin should be disabled before the input signals, and finally the VCC pin.
  • The maximum frequency of operation for the 74VHCV541FT is 250 MHz.
  • To ensure signal integrity, use a low-impedance PCB design, minimize trace lengths, and use termination resistors as needed. Also, ensure that the input signals are properly terminated and that the output loads are within the recommended specifications.
  • The maximum current rating for the 74VHCV541FT is 64mA per output pin.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74VHCV541FT Overview

Use the download button to access the 74VHCV541FT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74VHC, or try a keyword search, such as Bus Driver/Transceivers
