Wurth Elektronik provides a recommended PCB layout and land pattern in their application notes and layout recommendations, which can be found on their website or through their customer support.
Proper thermal management can be achieved by following Wurth Elektronik's thermal design guidelines, using thermal vias, and ensuring good airflow around the component. Additionally, the PCB layout should be designed to minimize thermal resistance and ensure efficient heat dissipation.
The maximum operating temperature range for the 750319021 is typically specified as -40°C to +125°C, but it's essential to check the specific datasheet and application notes for the exact temperature range, as it may vary depending on the specific component and application.
To minimize EMI and ensure EMC, it's recommended to follow Wurth Elektronik's guidelines for PCB layout, component placement, and shielding. Additionally, using EMI filters, shielding cans, and proper grounding techniques can help reduce EMI and ensure EMC compliance.
Wurth Elektronik recommends storing the 750319021 in a dry, cool place, away from direct sunlight and moisture. Handling should be done with anti-static precautions, such as using anti-static wrist straps, mats, and bags, to prevent damage from electrostatic discharge.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
750319021 Overview

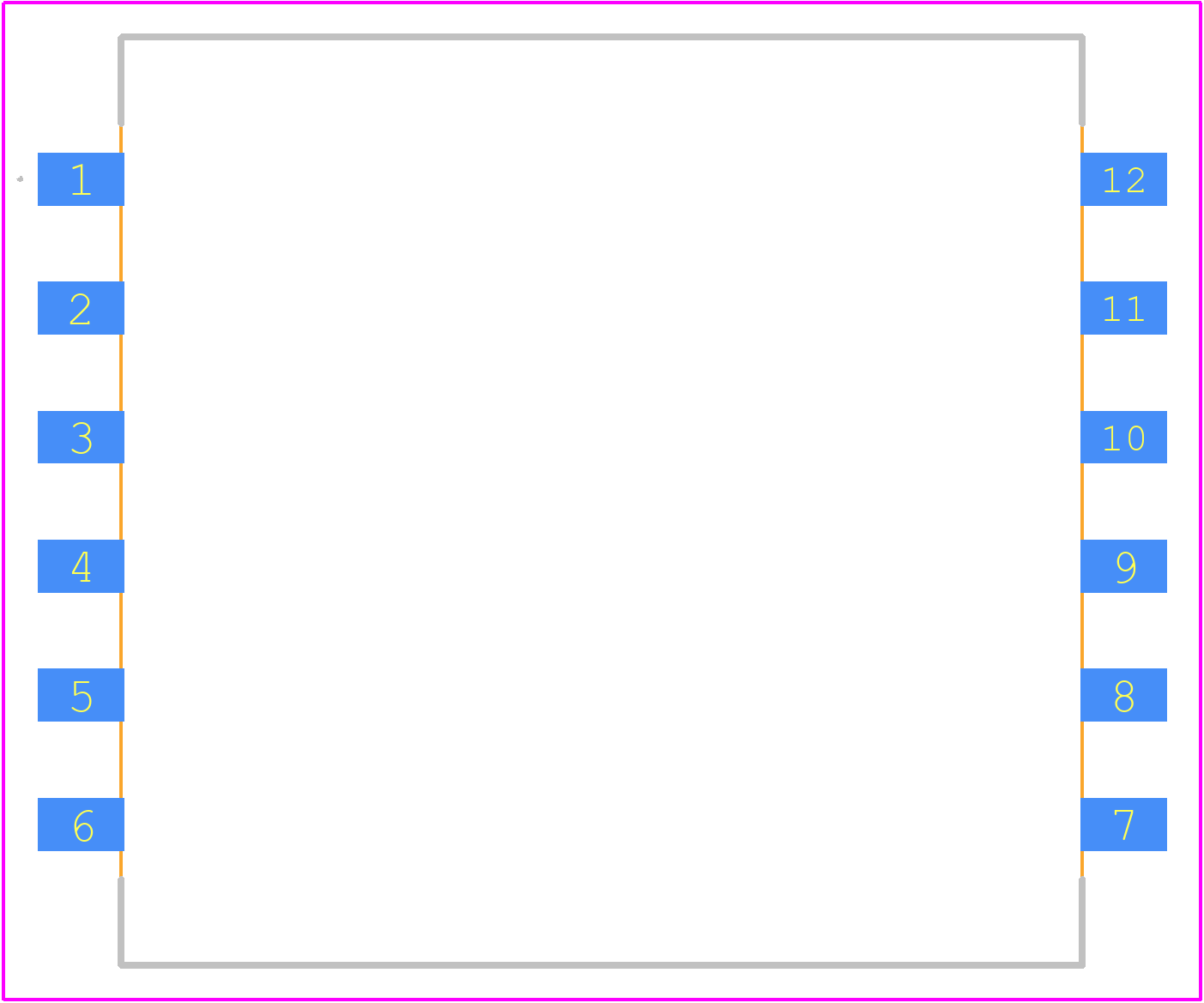

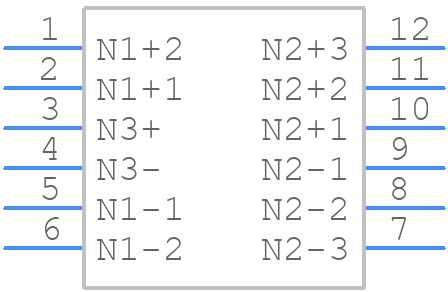

Use the download button to access the 750319021 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 75031,
or try a keyword search, such as SMPS Transformers
