75783-0126 - Molex

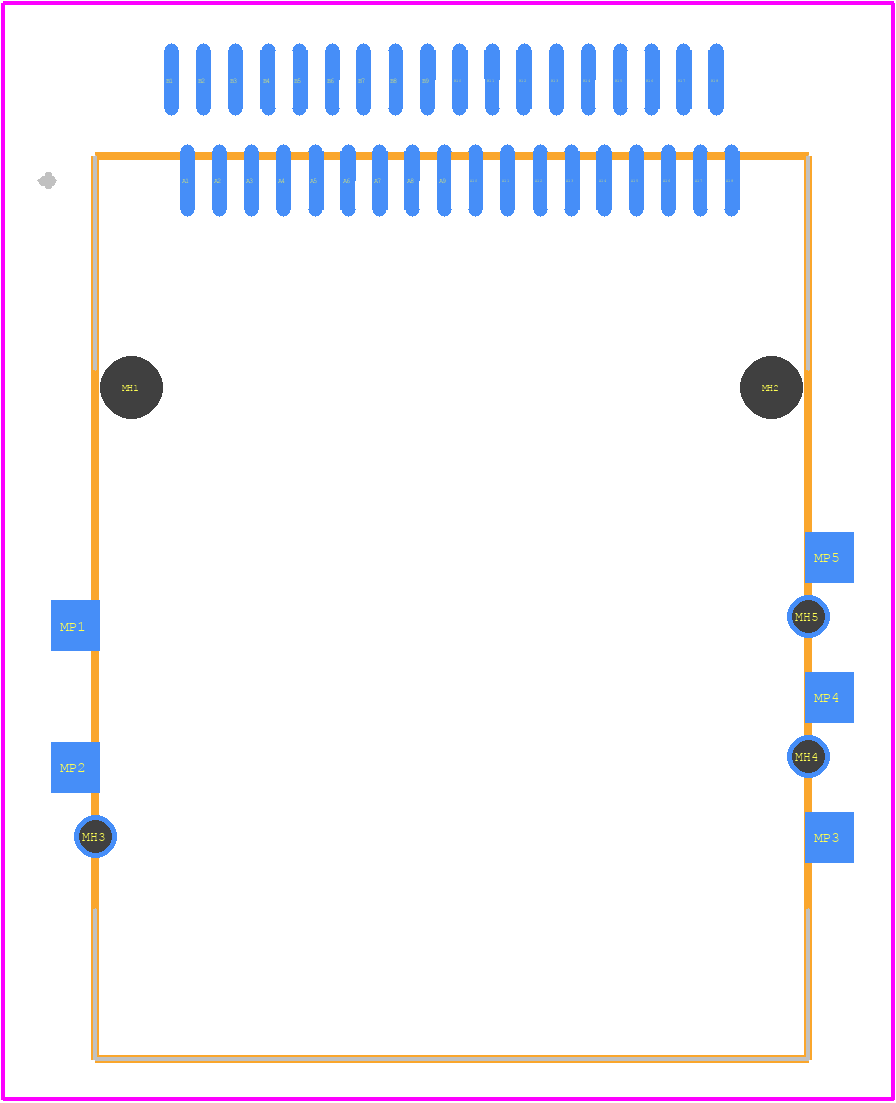

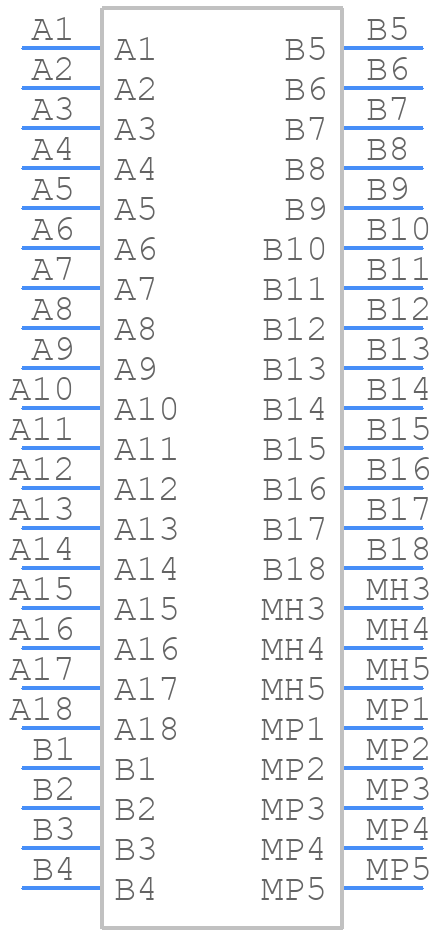

75783-0126 Details

• Manufacturer Part Number:

  75783-0126

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Mainland China, USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Molex

• YTEOL:

  0

• Body Breadth:

  0.333 inch

• Body Depth:

  0.889 inch

• Body Length:

  0.701 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  SAS CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  MALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  10 mΩ

• Contact Style:

  CENTRONIC

• Dielectric Withstanding Voltage:

  300VDC V

• Durability:

  250 Cycles

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYETHYLENE

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.031 inch

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  80 °C

• Operating Temperature-Min:

  -40 °C

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.54 mm

• Plating Thickness:

  15u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  0.5 A

• Reference Standard:

  CSA, UL

• Terminal Pitch:

  0.7874 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  36
