75800-0001 - Molex

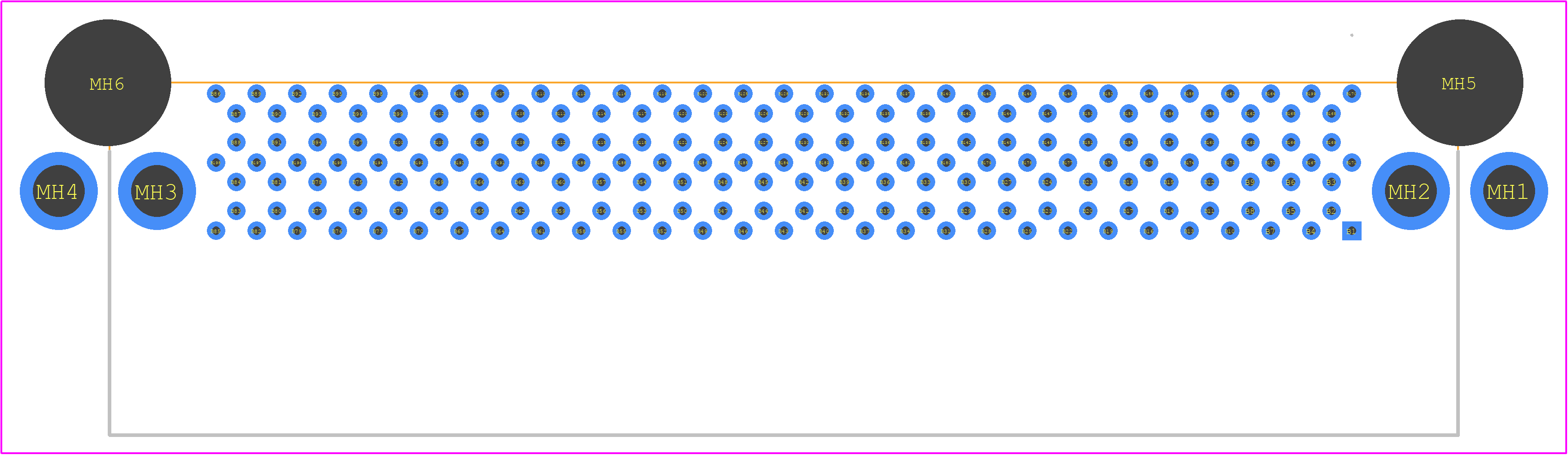

75800-0001 Details

• Manufacturer Part Number:

  75800-0001

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Molex

• YTEOL:

  0

• Board Mounting Option:

  PEG

• Body Breadth:

  0.86 inch

• Body Depth:

  0.654 inch

• Body Length:

  2.945 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  TELECOM AND DATACOM CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Matte Tin (Sn)

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  60 mΩ

• Contact Style:

  BELLOWED TYPE

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  100VAC V

• Durability:

  200 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  10000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.03 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  7

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  MIXED

• Plating Thickness:

  30u inch

• Rated Current (Signal):

  1 A

• Reference Standard:

  CSA, UL

• Terminal Length:

  0.079 inch

• Terminal Pitch:

  2.2606 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  170

• UL Flammability Code:

  94V-0
