75900-1461 - Molex

75900-1461 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
• Can I use this connector in high-vibration applications?
  Yes, the 75900-1461 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
• Is this connector suitable for outdoor or harsh environmental use?
  The 75900-1461 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating. Additionally, consider using additional protection measures, such as conformal coating or potting, for extreme environmental conditions.
• Can I use this connector with wire sizes other than the recommended AWG 20-24?
  While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 75900-1461 connector. However, you should ensure the wire size is compatible with the connector's terminal design and doesn't compromise the connection's reliability or integrity.

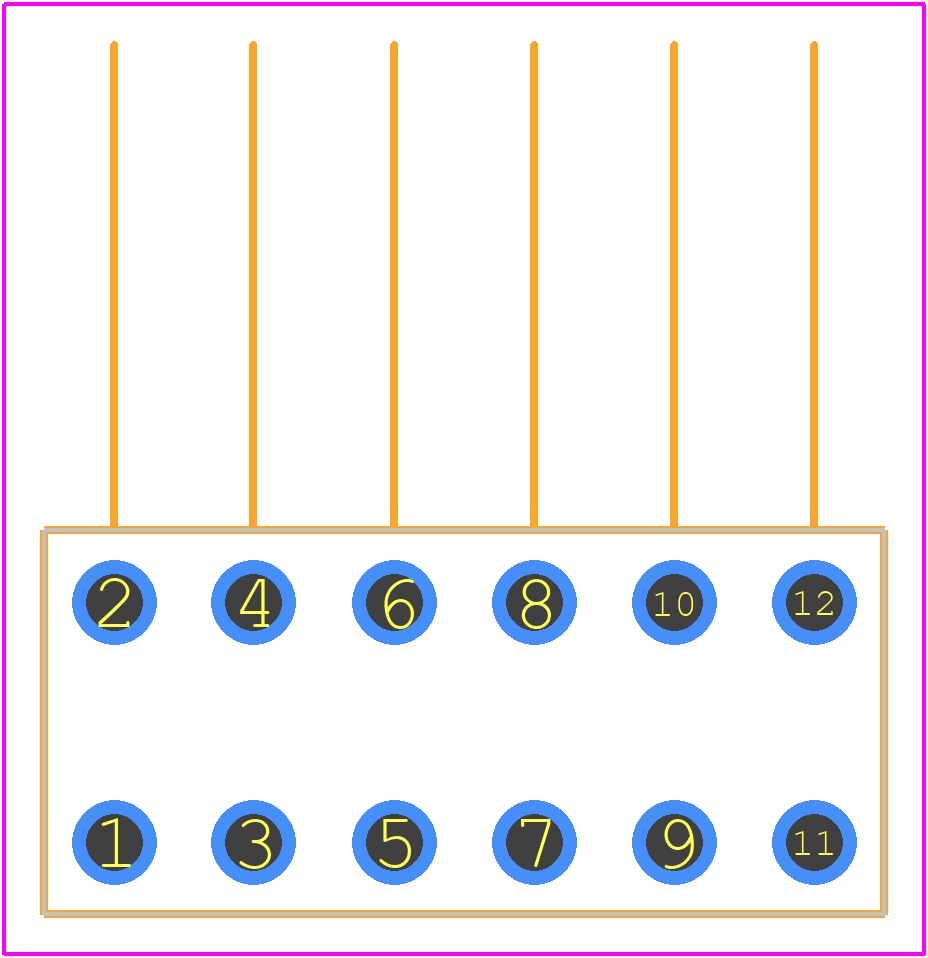

• Are there any specific PCB layout considerations for this connector?
  Yes, it's essential to follow proper PCB layout guidelines for the 75900-1461 connector. Ensure the PCB footprint matches the connector's dimensions, and provide adequate clearance around the connector to prevent interference with other components. Additionally, consider the connector's orientation and placement to minimize stress on the PCB and ensure reliable connections.
