76291-0226 - Molex

76291-0226 Details

• Manufacturer Part Number:

  76291-0226

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Compliant

• Manufacturer:

  Molex

• Board Mounting Option:

  PEG

• Body Breadth:

  0.426 inch

• Body Depth:

  0.941 inch

• Body Length:

  3.6 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  CARD EDGE CONNECTOR

• Contact Finish Mating:

  AU ON NI

• Contact Material:

  COPPER ALLOY

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  BELLOWED TYPE

• Durability:

  200 Cycles

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYESTER

• Manufacturer Series:

  76291

• Mating Contact Pitch:

  0.028 inch

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

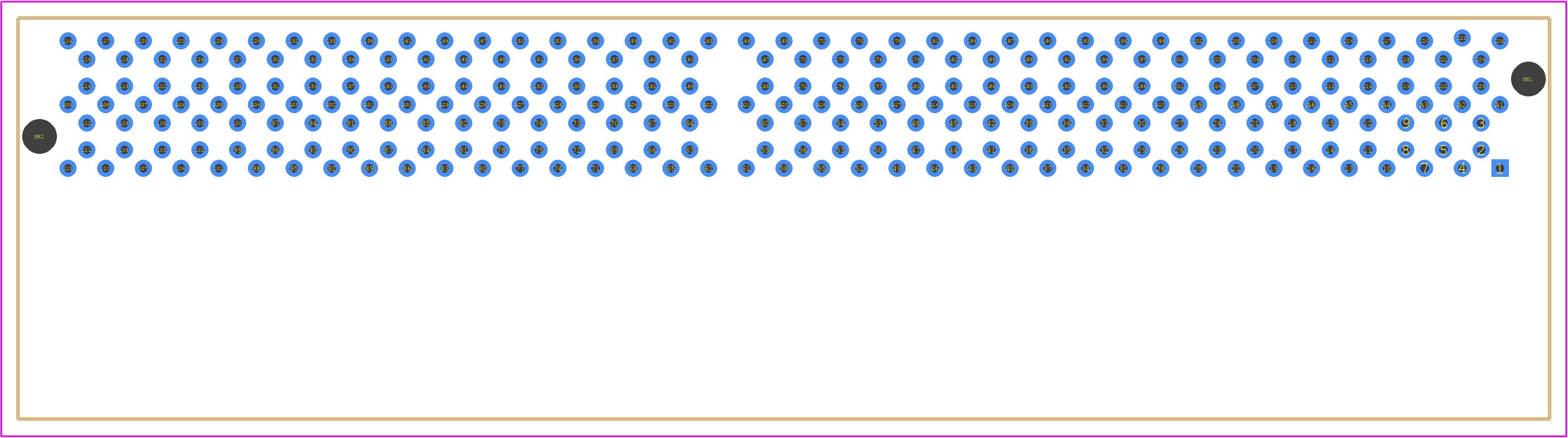

• Number Of PCB Rows:

  7

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  1.0922 mm

• Plating Thickness:

  30u inch

• Rated Current (Signal):

  1.5 A

• Reliability:

  COMMERCIAL

• Subcategory:

  Headers and Edge Type Connectors

• Terminal Length:

  0.074 inch

• Terminal Pitch:

  2.2098 mm

• Termination Type:

  PRESS FIT

• Total Number of Contacts:

  226
