766161103GPTR7 - CTS

Description: 10k Ohm ±2% 80mW Power Per Element Bussed 15 Resistor Network/Array ±100ppm/°C 16-SOIC (0.154", 3.90mm Width)

Download 766161103GPTR7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

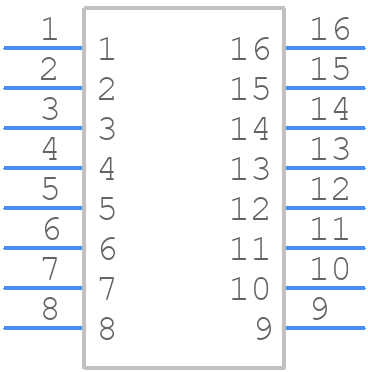

766161103GPTR7 - CTS - PCB symbol
click to zoom
PCB Footprints

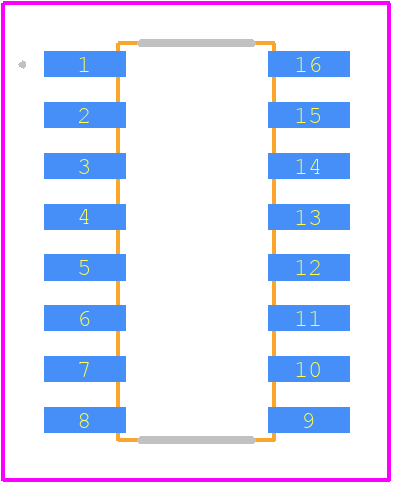

766161103GPTR7 - CTS PCB footprint - Other - Other - 766161103GPTR7-2
click to zoom
3D Models
766161103GPTR7 - CTS - 3D model - Other - 766161103GPTR7-2
click to zoom

766161103GPTR7 Details

  • Manufacturer Part Number:

    766161103GPTR7

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    CTS Corporation

  • YTEOL:

    6.7

  • Construction:

    Rectangular

  • Element Power Dissipation:

    0.08 W

  • First Element Resistance:

    10000 Ω

  • Mounting Feature:

    SURFACE MOUNT

  • Network Type:

    BUSSED

  • Number of Elements:

    15

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    1.55 mm

  • Package Length:

    9.9 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    3.9 mm

  • Packing Method:

    TR, Plastic, 7 Inch

  • Rated Power Dissipation (P):

    1.2 W

  • Rated Temperature:

    70 °C

  • Resistance:

    10000 Ω

  • Resistor Type:

    ARRAY/NETWORK RESISTOR

  • Second/Last Element Resistance:

    10000 Ω

  • Size Code:

    1539

  • Surface Mount:

    YES

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Shape:

    GULL WING

  • Tolerance:

    2%

  • Working Voltage:

    50 V
