76825-0010 - Molex

Description: Mega-Fit Right-Angle Header, 10 Circuits, Tin (Sn) Plating, UL 94 V-0, Glow-Wire Capable, Tray

Download 76825-0010 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
76825-0010 - Molex - PCB symbol
click to zoom
PCB Footprints

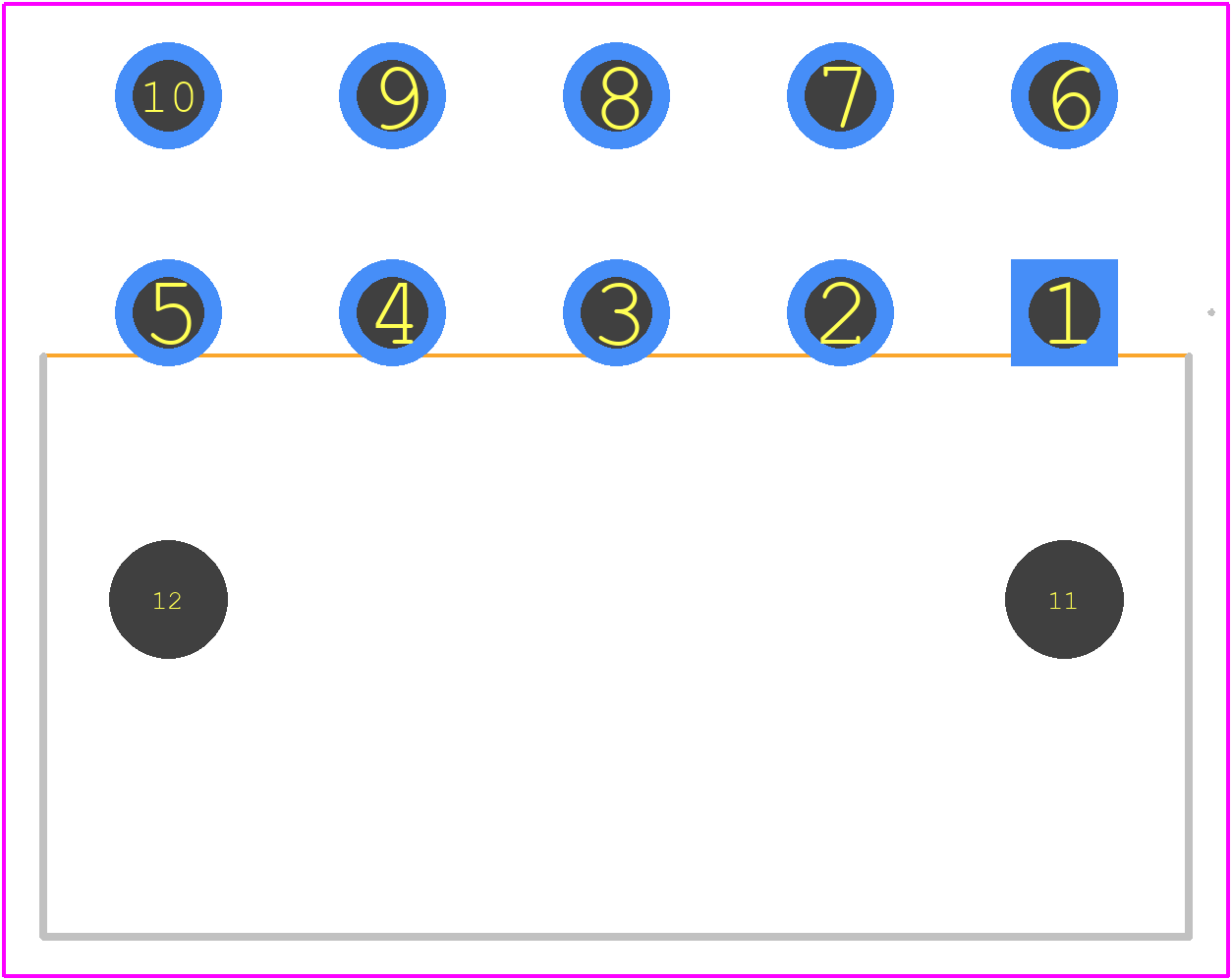

76825-0010 - Molex PCB footprint - Other - Other - 76825-0010-2
click to zoom
3D Models
76825-0010 - Molex - 3D model - Other - 76825-0010-2
click to zoom

76825-0010 Details

  • Manufacturer Part Number:

    76825-0010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    6.75

  • Body Breadth:

    0.572 inch

  • Body Depth:

    0.864 inch

  • Body Length:

    1.148 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • JESD-609 Code:

    e3

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

76825-0010 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 76825-0010 is designed to withstand vibrations up to 10G (ISO 16750-3) and is suitable for use in high-vibration environments.
  • Yes, the 76825-0010 meets the requirements of the automotive industry, including temperature range, vibration, and electrical performance.
  • The 76825-0010 has an IP67 rating, meaning it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
  • The 76825-0010 is rated for operation in temperatures ranging from -40°C to 125°C, making it suitable for use in high-temperature environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

76825-0010 Overview

Use the download button to access the 76825-0010 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 76825, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
