1720640010 - Molex

Description: 5.70mm Pitch, Mega-Fit Right-Angle Header, 10 Circuits, 0.38µm Gold (Au) Plating, UL 94 V-0, Glow-Wire Capable, Tray, Black

Download 1720640010 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1720640010 - Molex - PCB symbol
click to zoom
PCB Footprints

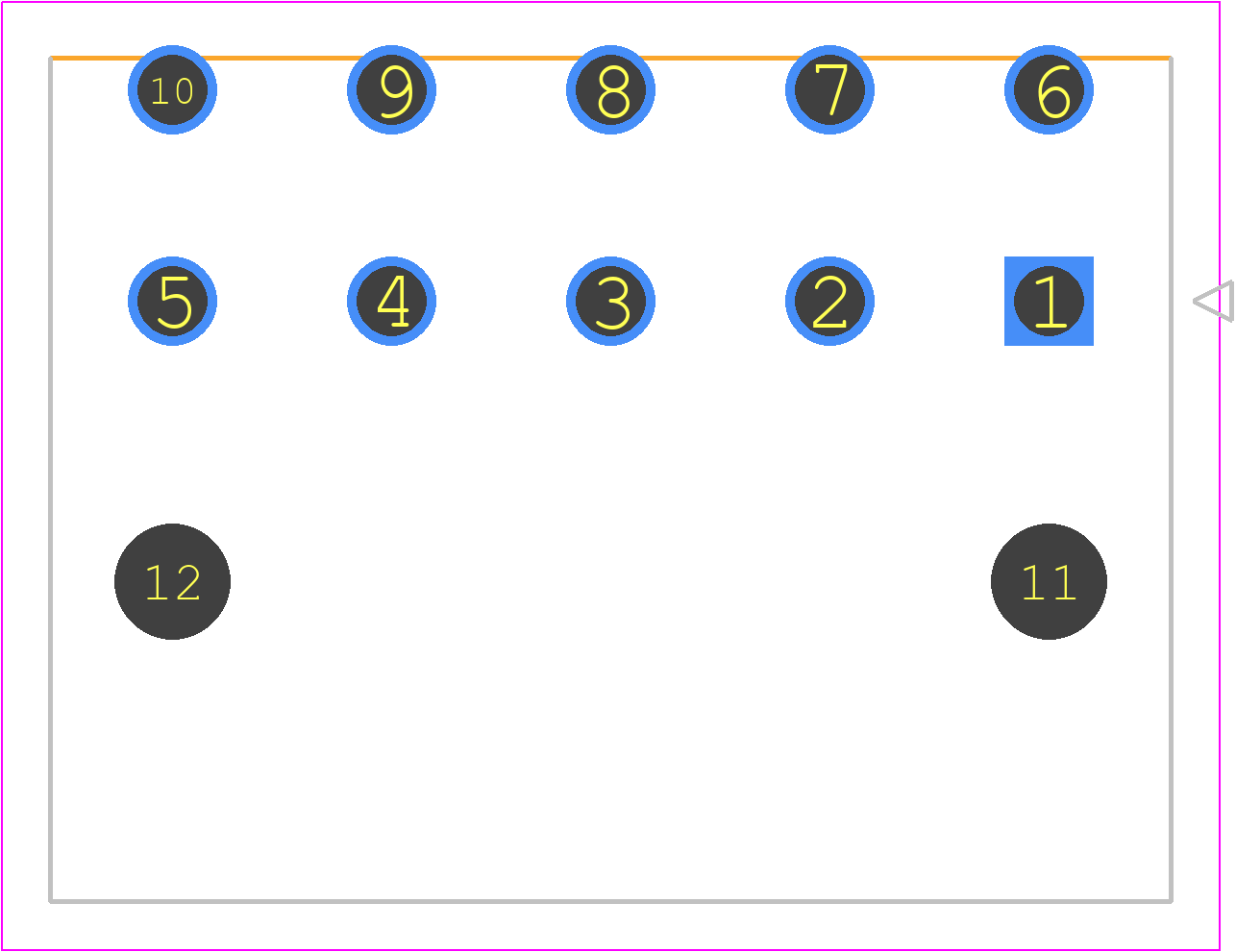

1720640010 - Molex PCB footprint - Other - Other - 172064YY10
click to zoom
3D Models
1720640010 - Molex - 3D model - Other - 172064YY10
click to zoom

1720640010 Details

  • Manufacturer Part Number:

    1720640010

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    POLARIZED, SHROUDED

  • Body Breadth:

    0.572 inch

  • Body Depth:

    0.864 inch

  • Body Length:

    1.148 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    23 A

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

1720640010 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1720640010 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure connections to prevent damage or disconnection.
  • The 1720640010 connector has a IP67 rating, making it suitable for outdoor use and capable of withstanding exposure to dust and water. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
  • The 1720640010 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • While the 1720640010 connector is designed for AWG 20-24 wires, it can accommodate other wire sizes with the use of adapters or specialized contacts. However, it's crucial to consult with Molex or a qualified engineer to ensure compatibility and reliability.
