Part Image

76829-0110 - Molex

Description: Molex Mega-Fit 76829, 10 Way, 2 Row, Vertical PCB Header

Download 76829-0110 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
76829-0110 - Molex - PCB symbol
click to zoom

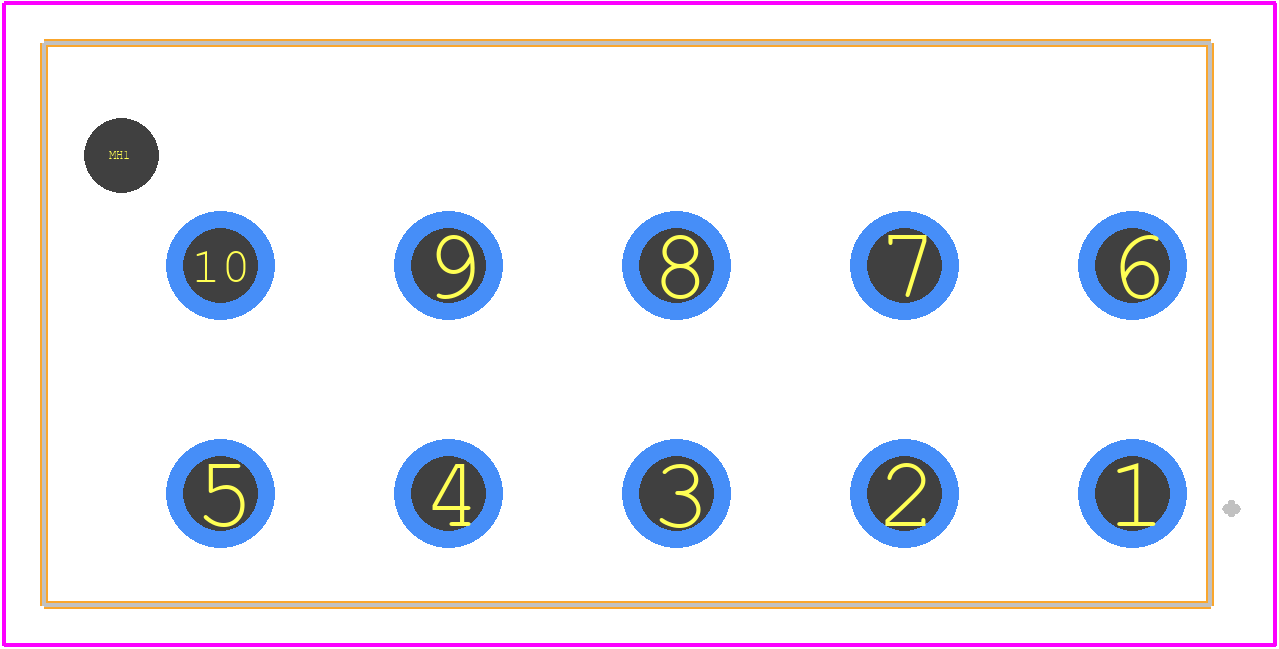

PCB Footprints
76829-0110 - Molex PCB footprint - Other - Other - 76829-0110-1
click to zoom
3D Models
76829-0110 - Molex - 3D model - Other - 76829-0110-1
click to zoom

76829-0110 Details

  • Manufacturer Part Number:

    76829-0110

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    6.75

  • Body Breadth:

    0.552 inch

  • Body Depth:

    0.583 inch

  • Body Length:

    1.148 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

76829-0110 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs) to ensure secure connections.
  • Yes, the 76829-0110 connector is designed to withstand vibrations up to 10G (10 times the force of gravity) and is suitable for use in high-vibration environments.
  • The operating temperature range for the 76829-0110 connector is -40°C to 105°C (-40°F to 221°F), making it suitable for use in a wide range of environments.
  • Yes, the 76829-0110 connector is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
  • The recommended wire size for the 76829-0110 connector is 24-20 AWG (0.25-0.5 mm²) to ensure reliable connections and minimize wire damage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

76829-0110 Overview

Use the download button to access the 76829-0110 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 76829, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
