76867-1011 - Molex

Description: High Speed / Modular Connectors iPassPlus HD IntRec Asy 1x1 0.76Au Sn12G

Download 76867-1011 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

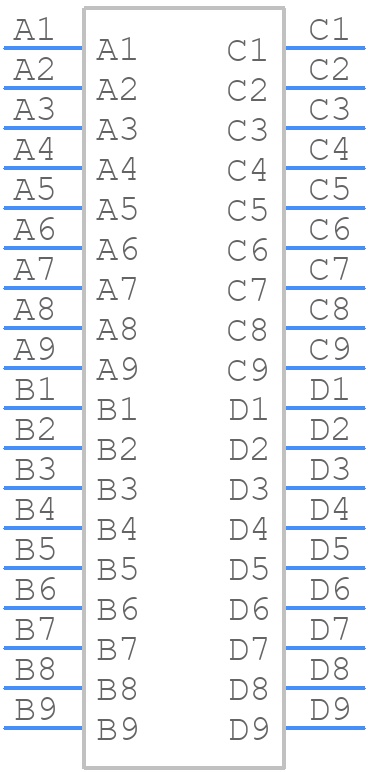

76867-1011 - Molex - PCB symbol
click to zoom
PCB Footprints

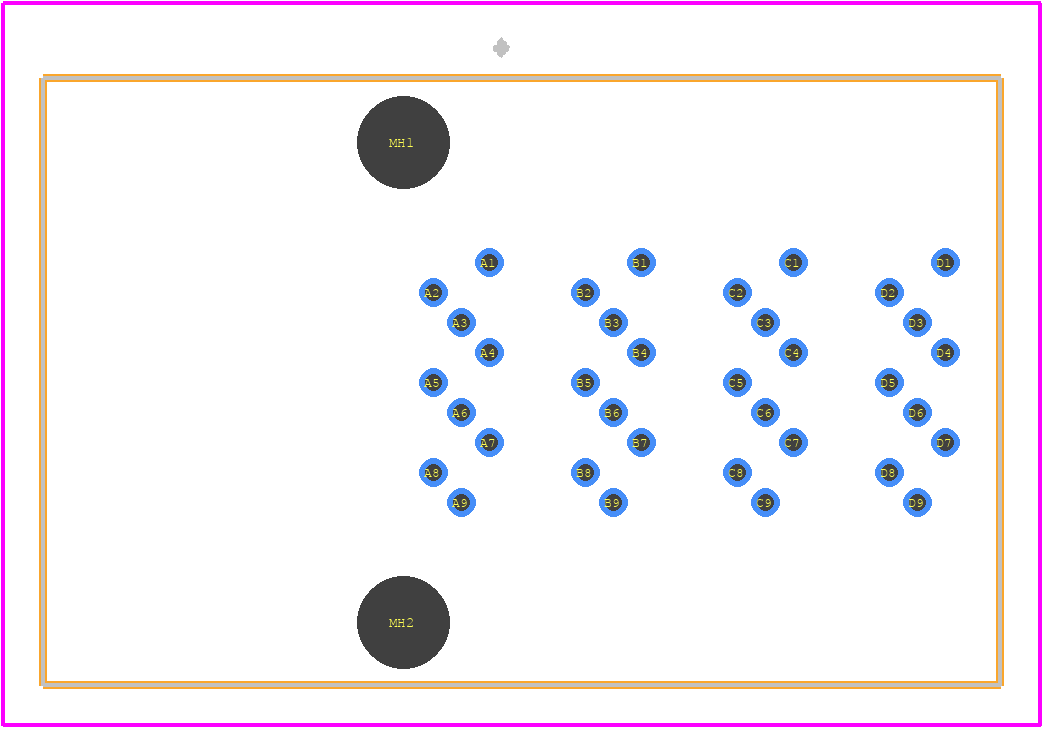

76867-1011 - Molex PCB footprint - Other - Other - 76867-1011-4
click to zoom
3D Models
76867-1011 - Molex - 3D model - Other - 76867-1011-4
click to zoom

76867-1011 Details

  • Manufacturer Part Number:

    76867-1011

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China, Mexico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    36

  • UL Flammability Code:

    94V-0
