7705202EA - Renesas Electronics

Description: The HI-548/883 and HI-549/883 are analog multiplexers with active overvoltage protection and guaranteed rON matching. Analog input levels may greatly exceed either power supply without damaging the device or disturbing the signal path of other channels. Active protection circuitry assures that signal fidelity is maintained even under fault conditions that would destroy other multiplexers. Analog inputs can withstand constant 70VP-P levels with ±15V supplies. Digital inputs will also sustain continuous fault

Download 7705202EA Model

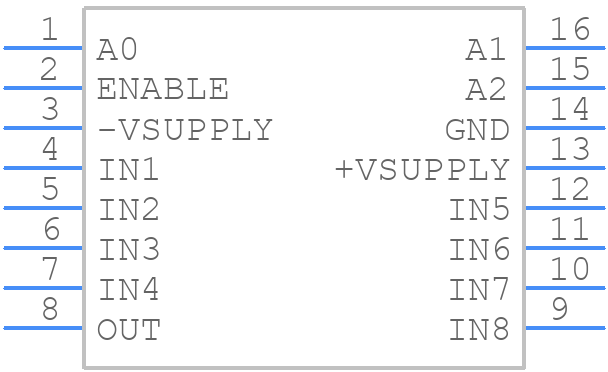

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

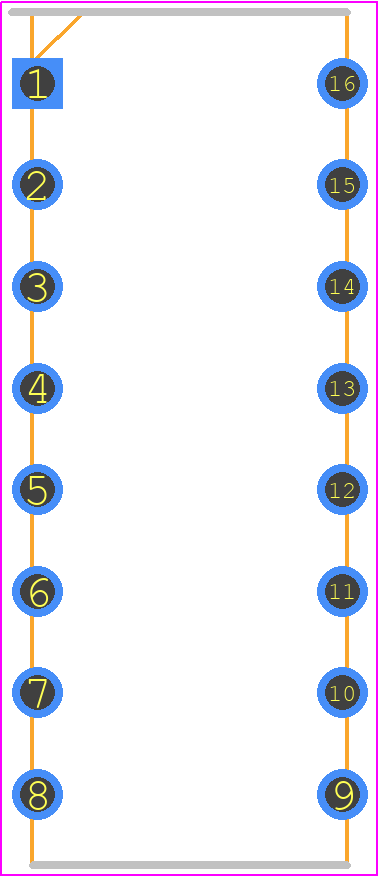

7705202EA - Renesas Electronics PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - F16.3
click to zoom
3D Models
7705202EA - Renesas Electronics  - 3D model - Ceramic Dual-In-Line Packages - F16.3
click to zoom

7705202EA Details

  • Manufacturer Part Number:

    7705202EA

  • Brand Name:

    Renesas

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CERDIP

  • Package Description:

    CERAMIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    F16.3

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Additional Feature:

    OVERVOLTAGE PROTECTION

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-GDIP-T16

  • JESD-609 Code:

    e0

  • Length:

    19.5326 mm

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    0.07 Ω

  • On-state Resistance-Max (Ron):

    1000 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Qualified

  • Screening Level:

    MIL-STD-883

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    1000 ns

  • Switch-on Time-Max:

    1000 ns

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

7705202EA Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a dedicated ground plane and thermal vias is recommended for optimal thermal performance. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern around the device.
  • Implement a robust thermal management system, including heat sinks, thermal interfaces, and airflow management. Ensure the device is operated within the specified temperature range and consider derating the device for extended reliability.
  • Use 0.1 μF and 10 μF decoupling capacitors, placed as close to the device as possible, with the 0.1 μF capacitor connected directly to the power pin and the 10 μF capacitor connected to the power plane.
  • Use a logic analyzer or oscilloscope to monitor signal integrity and timing. Check for proper power sequencing, voltage levels, and signal termination. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • Operating at the maximum specified frequency may increase power consumption, reduce reliability, and affect signal integrity. Ensure proper thermal management, signal termination, and power supply design to mitigate these effects.
