776200-1 - TE Connectivity

Description: Body Features: Primary Product Color Black | Connector & Keying Code 1 | Configuration Features: Number of Positions 23 | PCB Mount Orientation Vertical | Number of Rows 3 | Contact Features: Contact Type Pin | Contact Current Rating (Max) 8 AMP | Contact Mating Area Plating Material Tin | Housing Features: Centerline (Pitch) .157 INCH | Centerline (Pitch) 4 MM | Industry Standards: UL Flammability Rating UL 94V-0 | Mechanical Attachment: Connector Mounting Type Board Mount | PCB Mount Retention Without | P

Download 776200-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

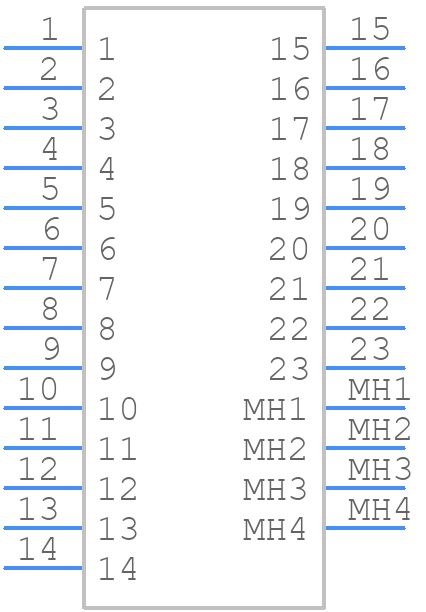

776200-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

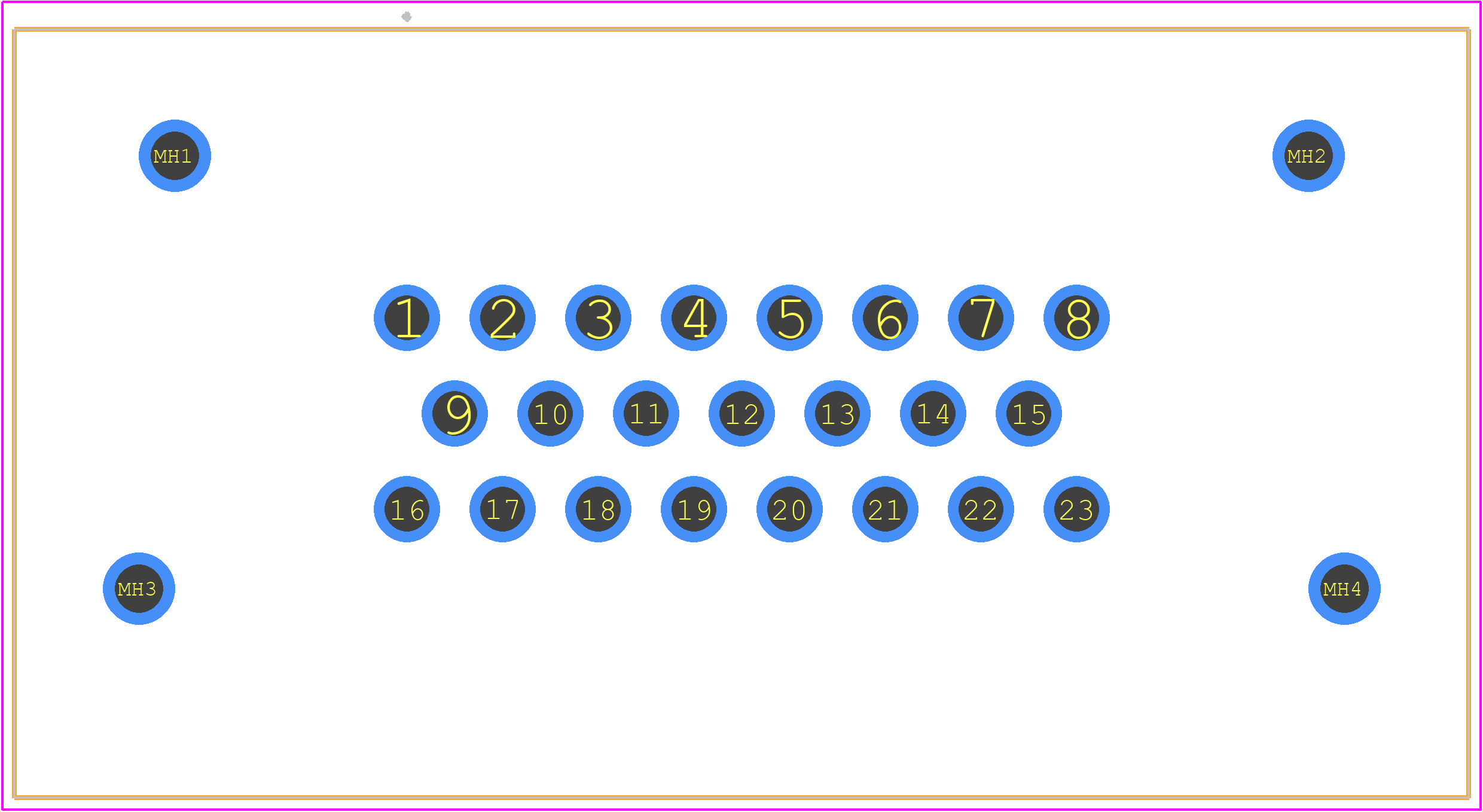

776200-1 - TE Connectivity PCB footprint - Other - Other - 776200-1-2
click to zoom
3D Models
776200-1 - TE Connectivity - 3D model - Other - 776200-1-2
click to zoom

776200-1 Details

  • Manufacturer Part Number:

    776200-1

  • Brand Name:

    AMP

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.44

  • Additional Feature:

    AMPSEAL

  • Body Breadth:

    1.264 inch

  • Body Depth:

    0.757 inch

  • Body Length:

    2.394 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    8A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    8 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    4 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    23

  • UL Flammability Code:

    94V-0

776200-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals on the 776200-1 connector.
  • Yes, the 776200-1 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial automation, transportation, and aerospace.
  • The 776200-1 connector is designed to operate in temperatures ranging from -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to follow proper installation and sealing guidelines to ensure optimal performance.
  • The maximum current rating for each contact on the 776200-1 connector is 3A. However, it's essential to consider the overall system design, wire gauge, and insulation to ensure safe and reliable operation.
  • The 776200-1 connector is suitable for both power and signal transmission applications. Its design and materials ensure reliable connections for a wide range of signal frequencies and power levels.
