776261-1 - TE Connectivity

Description: Body Features: Primary Product Color Black | Connector & Keying Code 1 | Configuration Features: Number of Rows 3 | Number of Positions 14 | PCB Mount Orientation Vertical | Contact Features: Contact Current Rating (Max) 8 AMP | Contact Mating Area Plating Material Tin | Contact Type Pin | Housing Features: Centerline (Pitch) 4 MM | Centerline (Pitch) .157 INCH | Industry Standards: UL Flammability Rating UL 94V-0 | Mechanical Attachment: Mating Alignment With | Connector Mounting Type Board Mount | PCB Mou

Download 776261-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

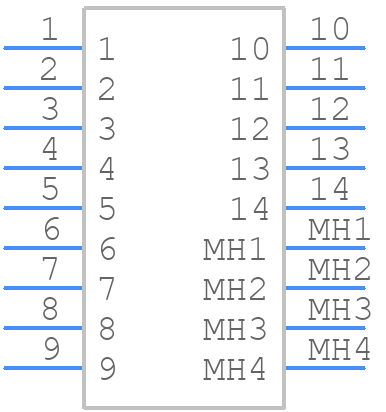

Symbol
776261-1 - TE Connectivity - PCB symbol
click to zoom

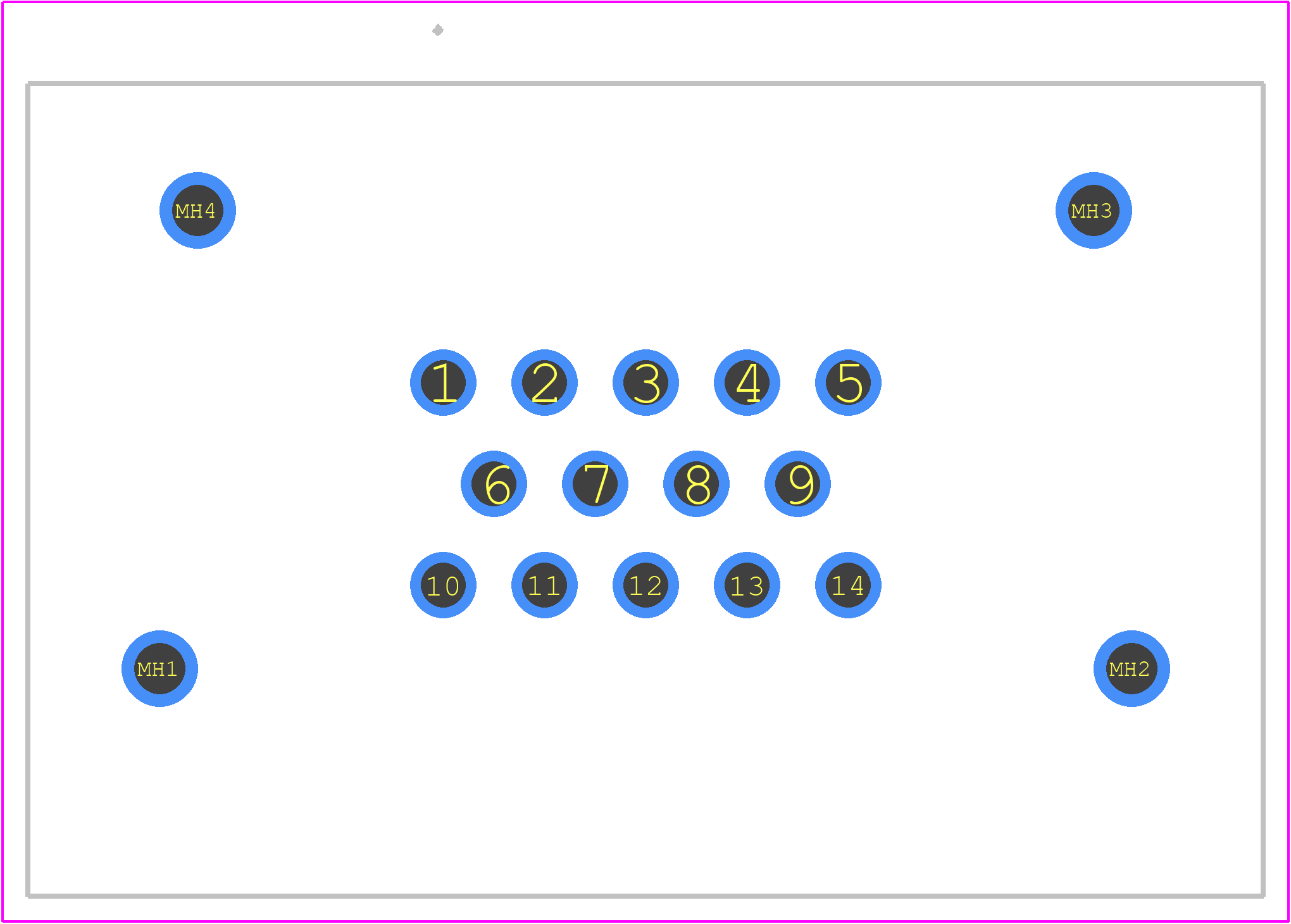

PCB Footprints
776261-1 - TE Connectivity PCB footprint - Other - Other - 776261-1-2
click to zoom
3D Models
776261-1 - TE Connectivity - 3D model - Other - 776261-1-2
click to zoom

776261-1 Details

  • Manufacturer Part Number:

    776261-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.41

  • Body Breadth:

    1.264 inch

  • Body Length:

    1.921 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    8A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    8 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    4 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    14

  • UL Flammability Code:

    94V-0

776261-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals on the 776261-1 connector.
  • Yes, the 776261-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Category 1 Class B vibration standard.
  • The 776261-1 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F).
  • Yes, the 776261-1 connector is designed to be resistant to harsh environments. It meets the IP67 rating for ingress protection and is resistant to many chemicals, but it's recommended to consult the datasheet or contact TE Connectivity for specific information on chemical resistance.
  • While it's technically possible to use a different wire gauge, it's not recommended. The 776261-1 connector is designed to work with specific wire gauges (22-18 AWG) for optimal performance and reliability. Using a different gauge may compromise the connector's performance or even cause damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

776261-1 Overview

Use the download button to access the 776261-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 77626, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
