780-M15-113R001 - NorComp

Description: Norcomp 780, SEAL-D Series, 15 Way Plug-In Mount PCB D-sub Connector Plug, 2.286mm Pitch

Download 780-M15-113R001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
780-M15-113R001 - NorComp - PCB symbol
click to zoom
PCB Footprints

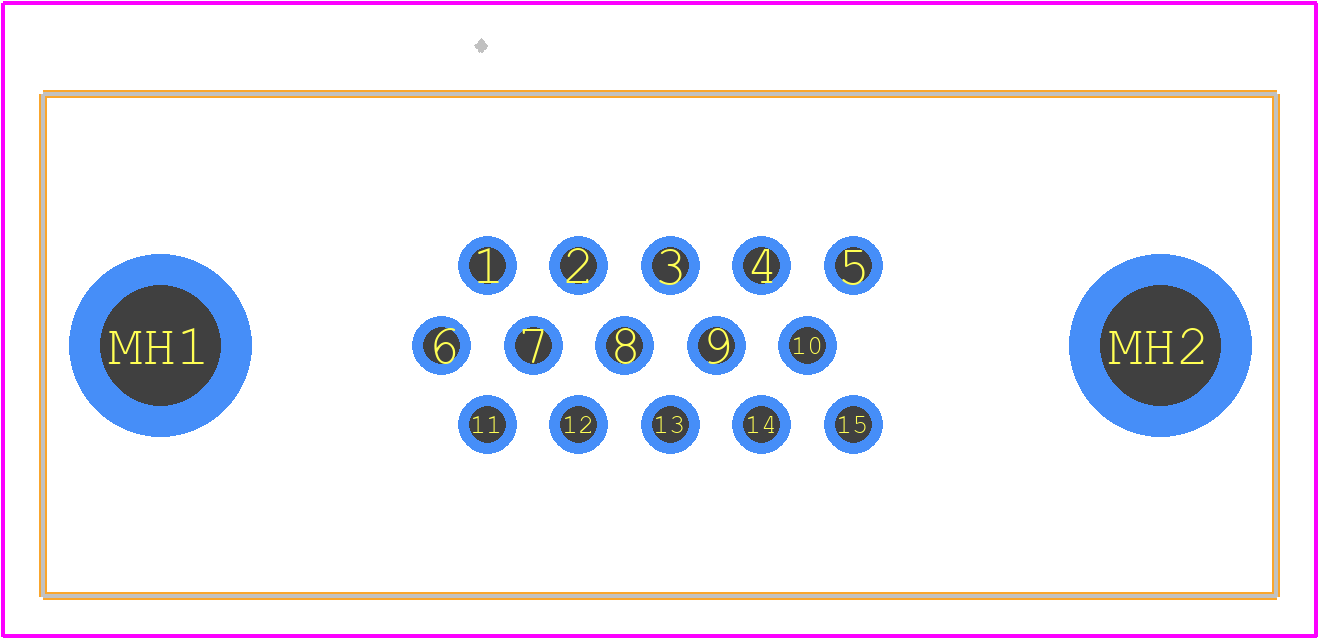

780-M15-113R001 - NorComp PCB footprint - Other - Other - 780-M15-113R001-1
click to zoom
3D Models
780-M15-113R001 - NorComp - 3D model - Other - 780-M15-113R001-1
click to zoom

780-M15-113R001 Details

  • Manufacturer Part Number:

    780-M15-113R001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    NorComp

  • YTEOL:

    8

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE6T

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

780-M15-113R001 Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads.
  • Yes, the 780-M15-113R001 is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and securing the connector.
  • The 780-M15-113R001 has a IP67 rating, making it suitable for outdoor use, but it's essential to ensure proper sealing and protection from environmental factors.
  • The operating temperature range for the 780-M15-113R001 is -40°C to 125°C (-40°F to 257°F).
  • It's recommended to use mating connectors from the same manufacturer (NorComp) to ensure compatibility and optimal performance. However, if you need to use a connector from another manufacturer, ensure it meets the same specifications and standards.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

780-M15-113R001 Overview

Use the download button to access the 780-M15-113R001 schematic symbol, PCB footprint, and 3D model.
