781-M15-113R141 footprint, schematic symbol and 3D model by NorComp

Symbol

click to zoom

PCB Footprints

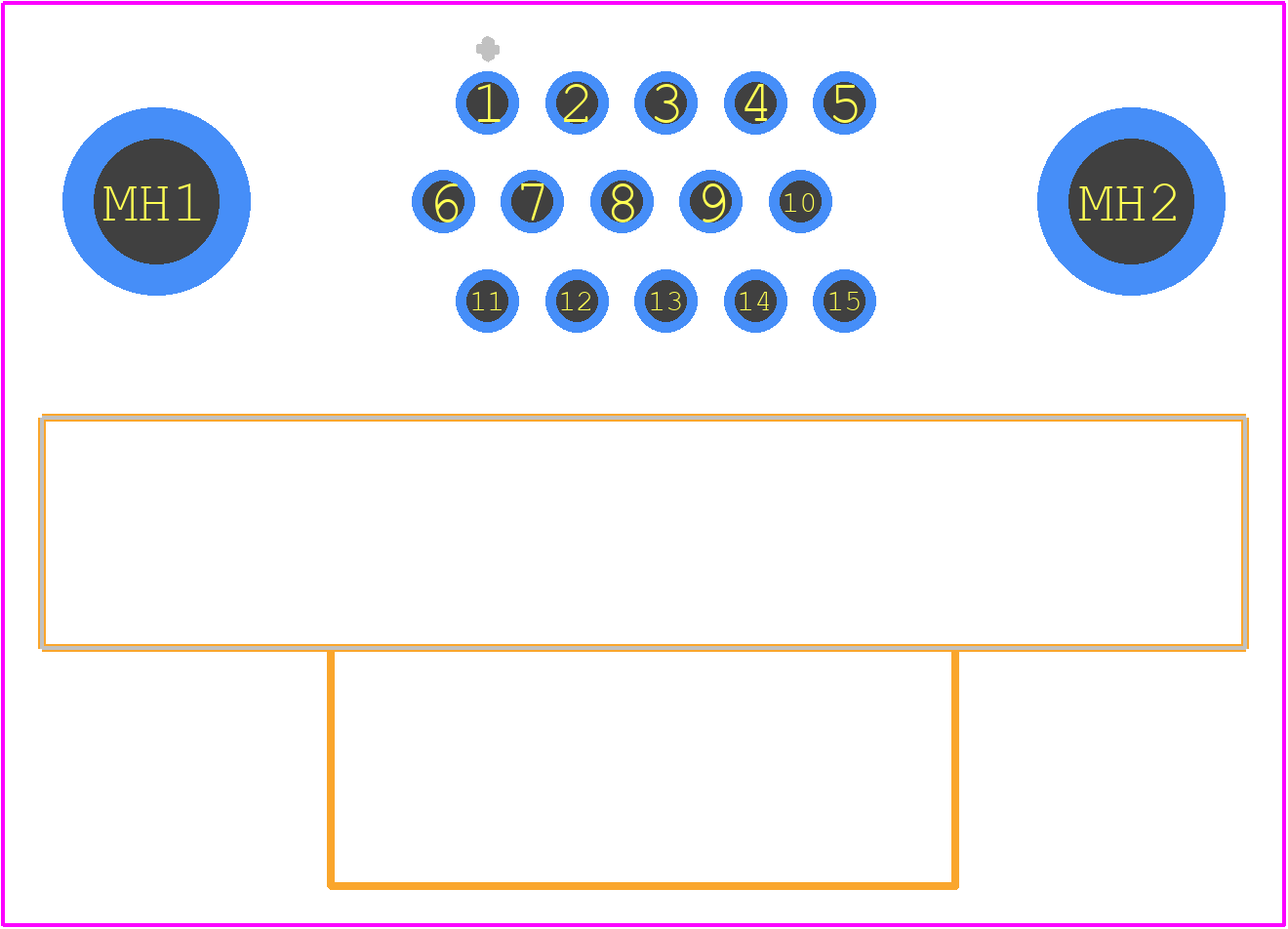

781-M15-113R141 - NorComp PCB footprint - Other - Other - 781-M15-113R141-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 781-M15-113R141
Part Number 781-M15-113R141
Manufacturer NorComp
Pin Count 17
Part Category Connector
Package Category Other
Footprint Name Other - 781-M15-113R141-3
Released Date Jul 26, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

781-M15-113R141 Details

Manufacturer Part Number:
781-M15-113R141
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
NorComp
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Material:
NOT SPECIFIED

781-M15-113R141 Frequently Asked Questions (FAQs)

The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the M15 threads.
Yes, the connector is designed to withstand high-vibration environments, making it suitable for aerospace, industrial, and transportation applications.
The operating temperature range for the 781-M15-113R141 is -55°C to 150°C (-65°F to 302°F).
Yes, the connector is designed to be environmentally sealed, with a rating of IP67, making it suitable for use in harsh environments.
The mating cycle life of the connector is rated for a minimum of 500 mating cycles.

Trust Checks

Expert Contribution

System Verified

Community Approved

781-M15-113R141 Overview

Use the download button to access the 781-M15-113R141 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 781-M, or try a keyword search, such as D Type Connectors
