The recommended torque for the screw terminals is 0.5-1.0 Nm (4.4-8.8 in-lbs).
Yes, the 781-M44-113R001 is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
Yes, the 781-M44-113R001 has a IP67 rating, making it suitable for outdoor use and able to withstand exposure to water and dust.
The operating temperature range for the 781-M44-113R001 is -40°C to 125°C (-40°F to 257°F).
Yes, the 781-M44-113R001 is designed for use with cable assemblies, and NorComp offers custom cable assembly services for this connector.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
781-M44-113R001 Overview

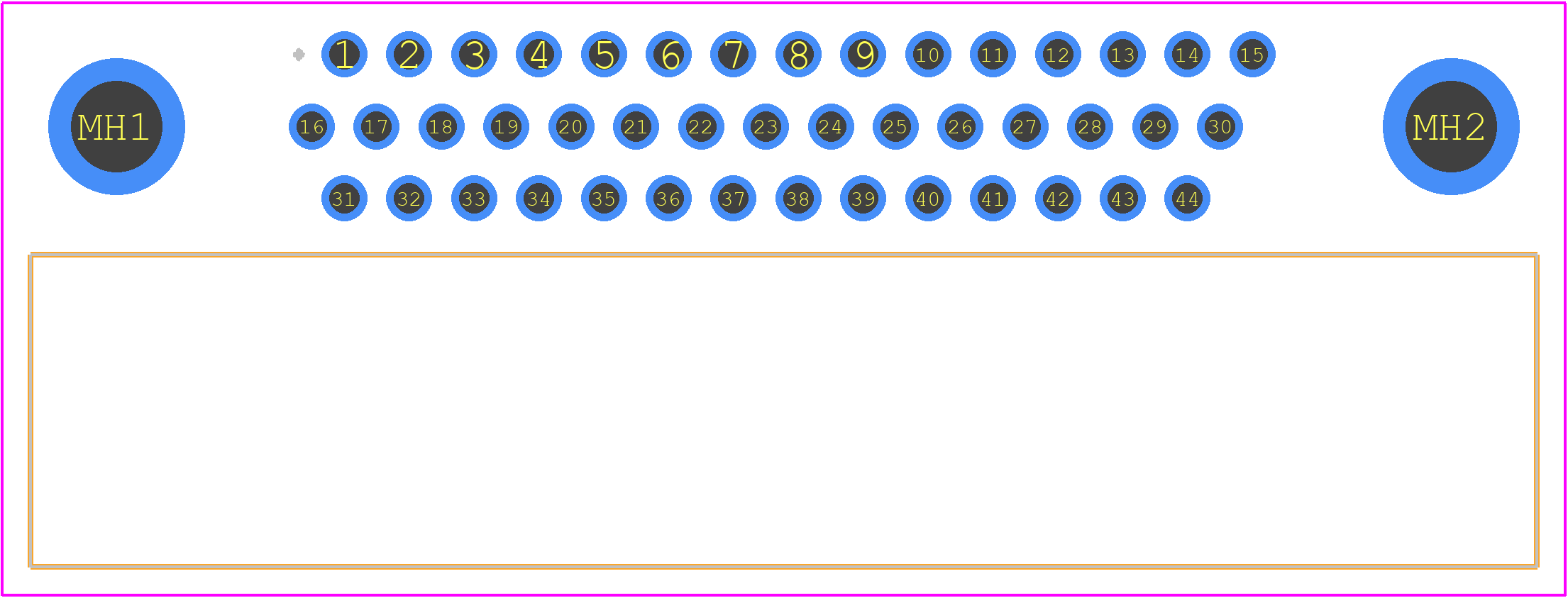

Use the download button to access the 781-M44-113R001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 781-M,
or try a keyword search, such as D Type Connectors
