78218-1001 - Molex

Description: High Speed / Modular Connectors IMPACT PWR 6PR VT RCPT PF .76AuLF 6CKT

Download 78218-1001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

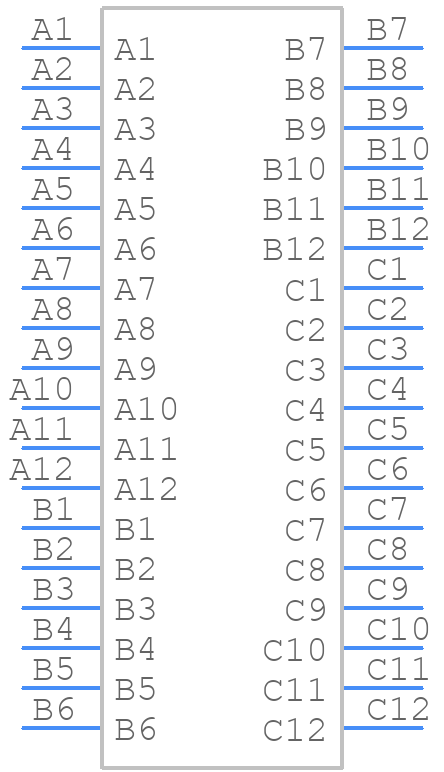

78218-1001 - Molex - PCB symbol
click to zoom
PCB Footprints

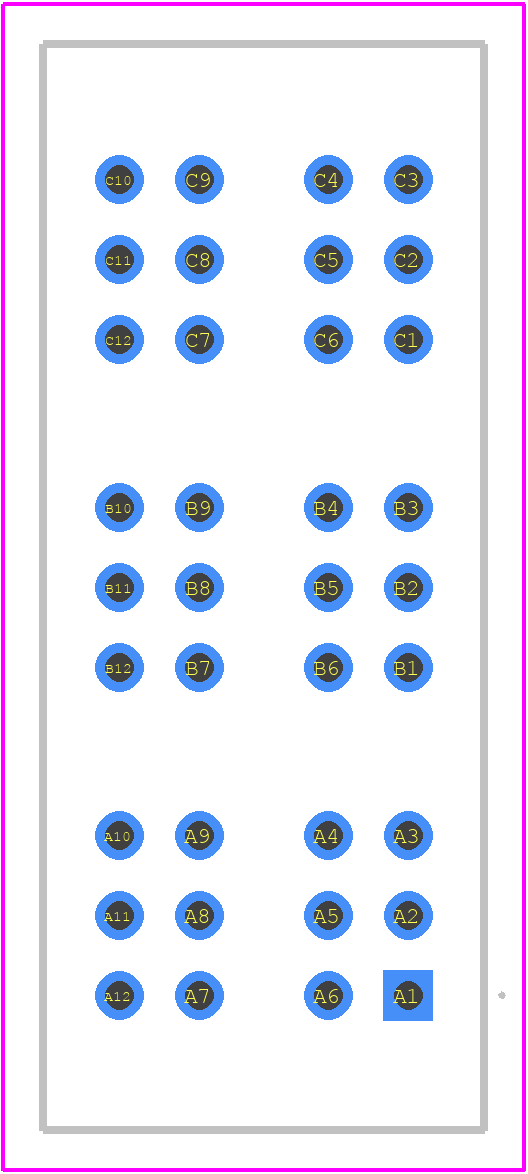

78218-1001 - Molex PCB footprint - Other - Other - 78218-1001-2
click to zoom
3D Models
78218-1001 - Molex - 3D model - Other - 78218-1001-2
click to zoom

78218-1001 Details

  • Manufacturer Part Number:

    78218-1001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Indonesia, Mainland China, Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body Breadth:

    0.433 inch

  • Body Depth:

    0.386 inch

  • Body Length:

    1.069 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Arrangement:

    S0P6

  • Contact Finish Mating:

    AU ON NI

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    COPPER ALLOY

  • Contact Resistance:

    1 mΩ

  • Contact Style:

    BLADE PIN-SKT

  • Filter Feature:

    NO

  • Insertion Force-Max:

    29.3568 N

  • Insulation Resistance:

    20000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mixed Contacts:

    YES

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Plating Thickness:

    30u inch

  • Reference Standard:

    UL

  • Terminal Length:

    0.098 inch

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    6

  • Withdrawl Force-Min:

    2.919 N

78218-1001 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 78218-1001 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 78218-1001 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's not designed for extreme outdoor or harsh environment applications. If you need a connector for such applications, consider using a connector with a higher IP rating or additional protection measures.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with some limitations. Consult with Molex or a qualified engineer to determine the feasibility of using alternative wire sizes and ensure reliable connections.
  • The 78218-1001 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). Exceeding this temperature range may affect the connector's performance and reliability.
