78B06ST - Grayhill

Description: PCB Slide Switch Single Pole Single Throw (SPST) 150 mA Slide

Download 78B06ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

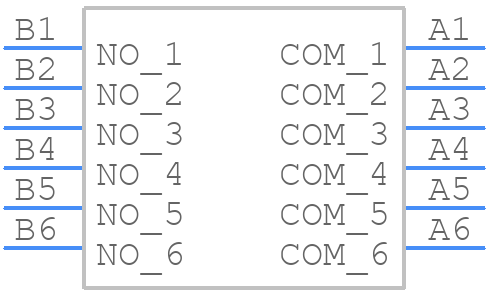

78B06ST - Grayhill - PCB symbol
click to zoom
PCB Footprints
78B06ST - Grayhill PCB footprint - Other - Other - 78B06ST-2
click to zoom
3D Models
78B06ST - Grayhill - 3D model - Other - 78B06ST-2
click to zoom

78B06ST Details

  • Manufacturer Part Number:

    78B06ST

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Grayhill Inc

  • YTEOL:

    6.6

  • Body Breadth:

    9.65 mm

  • Body Height:

    6.73 mm

  • Body Length or Diameter:

    17.3 mm

  • Contact Current(DC)-Max:

    0.15 A

  • Contact (DC) Max Rating R Load:

    .15A@30VDC

  • Contact Voltage(DC)-Max:

    30 V

  • Electrical Life:

    2000 Cycle(s)

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Switch Sections:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Hole Count:

    12

  • Packing Method:

    TUBE

  • Sealing:

    TOP TAPE SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Termination Type:

    SOLDER
