78B07RAT - Grayhill

Description: Dip Switch SPST 7 Position Through Hole, Right Angle Slide (Standard) Actuator 150mA 30VDC , -40°C ~ 85°C

Download 78B07RAT Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 78B07RAT model

Email notifications will be applied after download.

Send part feedback

Symbol

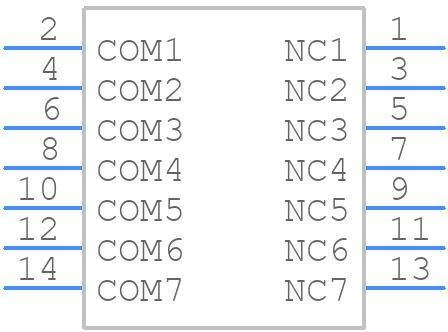

78B07RAT - Grayhill - PCB symbol

PCB Footprints

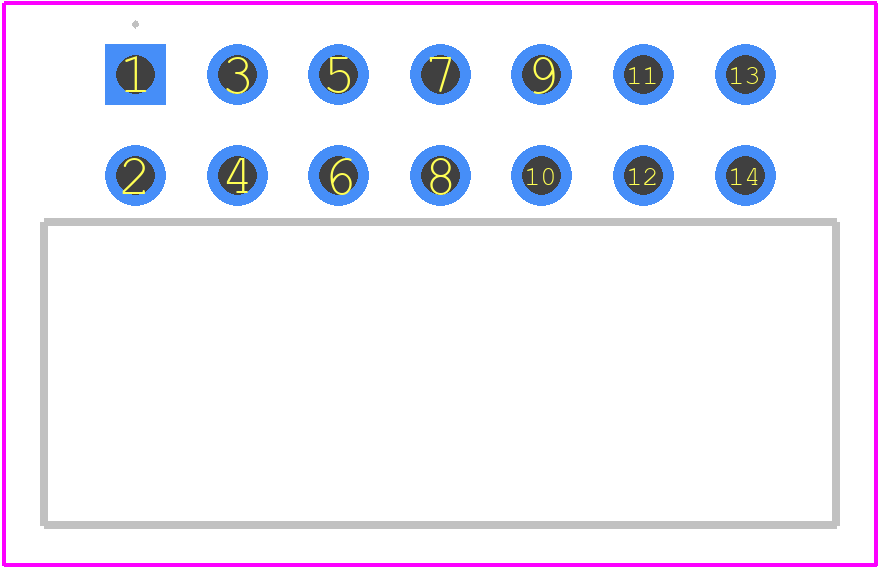

78B07RAT - Grayhill PCB footprint - Other - Other - 78B07RAT-2

3D Models

78B07RAT - Grayhill - 3D model - Other - 78B07RAT-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 78B07RAT
Part Number 78B07RAT
Manufacturer Grayhill
Pin Count 14
Part Category Switch
Package Category Other
Footprint Name Other - 78B07RAT-2
Released Date Nov 27, 2025
Last Modified Date Nov 27, 2025 1:14 PM UTC
Pinout / Pin List Click Here (Member Only)

78B07RAT Details

Manufacturer Part Number:
78B07RAT
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
Grayhill Inc
Switch Type:
SLIDE DIP SWITCH
