The recommended torque for assembling the 78J03T switch is 0.5-1.5 in-lbs (0.056-0.169 Nm). This ensures proper seating of the switch contacts and prevents damage to the internal mechanisms.
Yes, the 78J03T switch is designed to withstand moderate vibration levels. However, it's essential to ensure proper mounting and secure the switch to prevent damage or malfunction. Grayhill recommends following the mounting instructions and consulting with their application engineers for specific vibration requirements.
The 78J03T switch is rated for operation in temperatures ranging from -20°C to 85°C (-4°F to 185°F). However, it's essential to note that the switch's performance and lifespan may be affected by extreme temperatures, and Grayhill recommends consulting their application engineers for specific temperature requirements.
The 78J03T switch is not sealed or waterproof, and it's not recommended for use in humid or wet environments. If your application requires a switch that can withstand moisture, Grayhill offers other models with IP67 or higher ratings. Consult their application engineers for guidance on selecting the appropriate switch for your specific requirements.
The 78J03T switch is designed for a minimum of 10,000 cycles, but its actual lifespan depends on various factors, such as operating conditions, usage patterns, and maintenance. Grayhill recommends following proper maintenance and cleaning procedures to ensure the switch's longevity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
78J03T Overview

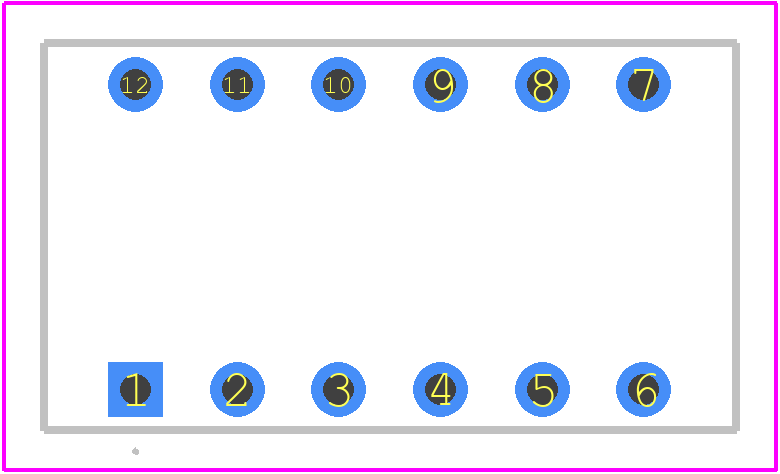

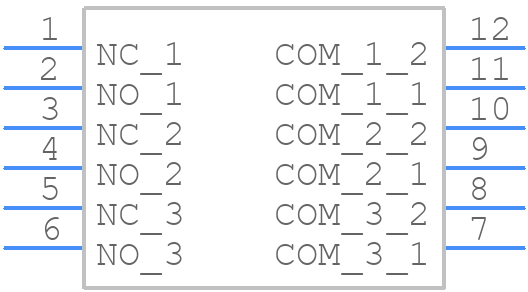

Use the download button to access the 78J03T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 78J03,
or try a keyword search, such as DIP Switches
