78Q2133/F - Analog Devices

Description: Ethernet ICs 10/100 Base Tx Transcvr w/MDIX-IND

Download 78Q2133/F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

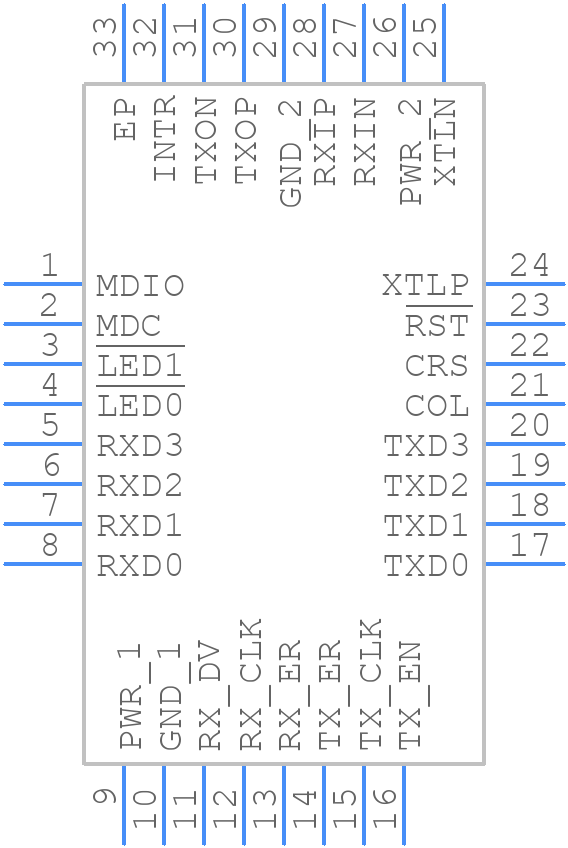

78Q2133/F - Analog Devices - PCB symbol
click to zoom
PCB Footprints
78Q2133/F - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-QFN**
click to zoom
3D Models
78Q2133/F - Analog Devices - 3D model - Quad Flat No-Lead - 32-QFN**
click to zoom

78Q2133/F Details

  • Manufacturer Part Number:

    78Q2133/F

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    32-LFCSP-5X5X0.85

  • Package Description:

    5 X 5 MM, LEAD FREE, QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LFCSP-5X5X0.85

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2010-07-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    0.11 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

78Q2133/F Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the 78Q2133/F. Ensure a solid ground plane, keep the input and output traces short and separate, and use a common-mode choke to reduce EMI. Refer to Analog Devices' application notes and layout guidelines for more information.
  • Choose input capacitors with low ESR and high ripple current ratings. For output capacitors, select ones with low ESR, high capacitance, and a voltage rating that meets or exceeds the output voltage. Refer to the datasheet for recommended capacitor values and types.
  • The 78Q2133/F is rated for operation up to 85°C ambient temperature. However, for reliable long-term operation, it's recommended to keep the ambient temperature below 70°C to minimize thermal stress and ensure optimal performance.
  • Use overvoltage protection (OVP) and overcurrent protection (OCP) circuits to prevent damage from voltage and current surges. You can also use a fuse or a current-limiting resistor in series with the input to protect the device.
  • The recommended input voltage range for the 78Q2133/F is 3.5V to 5.5V. Operating outside this range may affect performance, efficiency, and reliability. Ensure the input voltage is within this range for optimal operation.
