7B-16.000MAAJ-T footprint, schematic symbol and 3D model by TXC CORPORATION

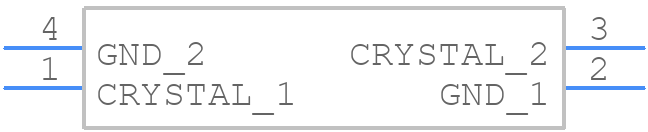

Symbol

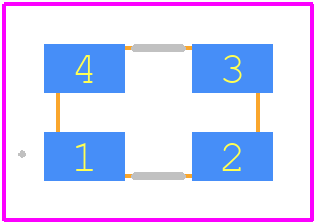

PCB Footprints

3D Models

7B-16.000MAAJ-T Details

The recommended storage temperature range for the 7B-16.000MAAJ-T is -40°C to +125°C.
While the 7B-16.000MAAJ-T is designed to operate in a variety of environments, it's recommended to keep the relative humidity below 80% to prevent moisture-related issues.
The maximum soldering temperature for the 7B-16.000MAAJ-T is 260°C for 10 seconds or less.
Yes, the 7B-16.000MAAJ-T is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.
The typical power consumption of the 7B-16.000MAAJ-T is around 10mA, but this can vary depending on the specific application and operating conditions.

Expert Contribution

System Verified

Community Approved

Use the download button to access the 7B-16.000MAAJ-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 7B-16, or try a keyword search, such as Quartz Crystals
