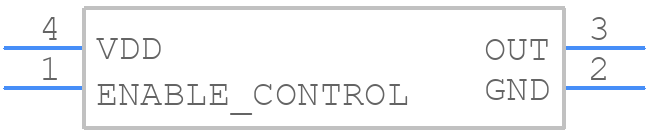

7C-12.000MBA-T - TXC CORPORATION

7C-12.000MBA-T Frequently Asked Questions (FAQs)

• What is the recommended termination resistance for this oscillator?
  According to TXC Corporation's application notes, a 1 kΩ to 10 kΩ termination resistance is recommended to ensure stable operation and minimize jitter.
• How do I ensure the oscillator's output signal is properly AC-coupled?
  To ensure proper AC-coupling, use a capacitor with a value between 100 nF to 1 μF in series with the output signal, and a 1 kΩ to 10 kΩ resistor to ground.
• What is the maximum operating temperature range for this oscillator?
  The 7C-12.000MBA-T oscillator is rated for operation from -40°C to +85°C, but it's recommended to derate the frequency tolerance by 5 ppm/°C for temperatures above 70°C.
• Can I use this oscillator in a high-vibration environment?
  While the 7C-12.000MBA-T is designed to be rugged, it's still recommended to follow proper mounting and soldering techniques to ensure reliable operation in high-vibration environments.
• How do I minimize electromagnetic interference (EMI) when using this oscillator?
  To minimize EMI, use a shielded enclosure, keep the oscillator away from other high-frequency components, and use a common-mode choke or ferrite bead on the output signal line.
