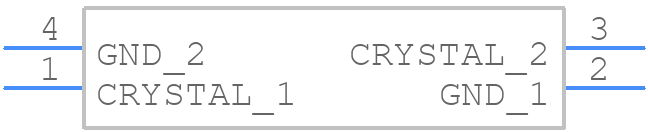

7M-20.000MAAJ-T - TXC CORPORATION

7M-20.000MAAJ-T Frequently Asked Questions (FAQs)

• What is the recommended termination resistance for this oscillator?
  The recommended termination resistance for the 7M-20.000MAAJ-T is 1 kΩ to ensure proper signal integrity and minimize reflections.
• How do I ensure the oscillator's stability over temperature and voltage variations?
  To ensure stability, use a stable power supply, maintain a consistent temperature range, and consider using a voltage regulator to minimize voltage variations. Additionally, consider using a capacitor with a low temperature coefficient to stabilize the oscillator's frequency.
• What is the maximum allowable capacitance load for this oscillator?
  The maximum allowable capacitance load for the 7M-20.000MAAJ-T is 15 pF. Exceeding this value may affect the oscillator's frequency stability and amplitude.
• Can I use this oscillator in a high-temperature environment?
  The 7M-20.000MAAJ-T is rated for operation up to 85°C. However, for high-temperature applications above 85°C, consider using a more suitable oscillator or taking additional thermal management measures.
• How do I minimize electromagnetic interference (EMI) when using this oscillator?
  To minimize EMI, use a shielded enclosure, keep the oscillator away from other high-frequency components, and use a low-pass filter or ferrite bead to reduce emissions.
