7M-30.000MAAE-T footprint, schematic symbol and 3D model by TXC CORPORATION

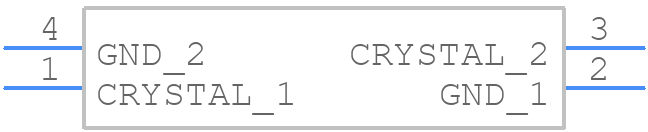

Symbol

PCB Footprints

7M-30.000MAAE-T Details

The recommended operating temperature range for the 7M-30.000MAAE-T is -40°C to +85°C.
To ensure the oscillator starts up correctly, make sure to decouple the power supply with a 10uF capacitor and provide a stable voltage supply within the recommended operating range.
The maximum allowable voltage tolerance for the 7M-30.000MAAE-T is ±5% of the nominal voltage.
To handle ESD protection for the 7M-30.000MAAE-T, use a wrist strap or a mat that is connected to a grounded surface, and handle the device by the package body, avoiding direct contact with the pins.
The recommended storage condition for the 7M-30.000MAAE-T is in a dry, cool place, away from direct sunlight, with a relative humidity of 60% or less.

Expert Contribution

System Verified

Community Approved

Use the download button to access the 7M-30.000MAAE-T schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 7M-30, or try a keyword search, such as Quartz Crystals
