7MBR100VR120-50 - FUJI ELECTRIC

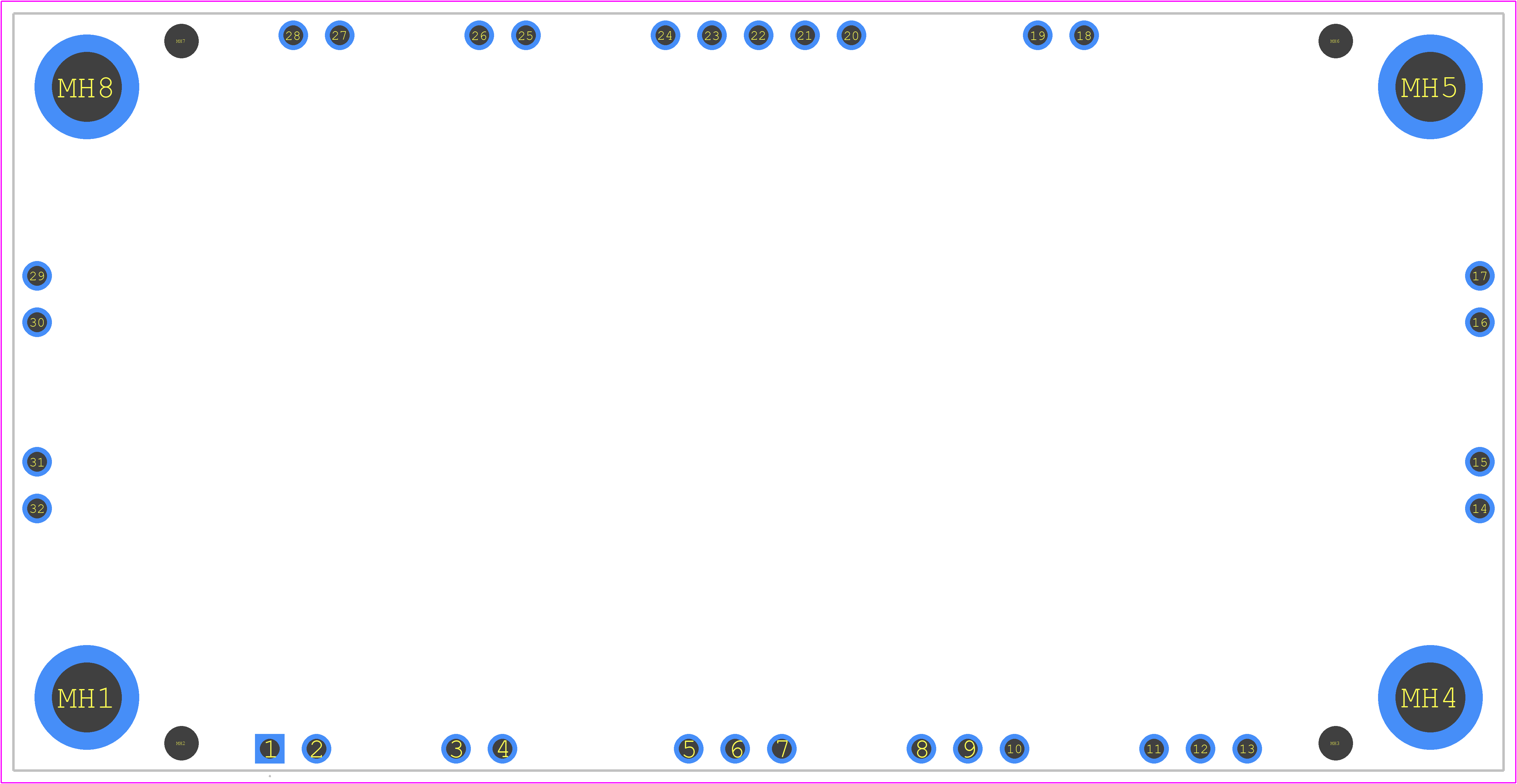

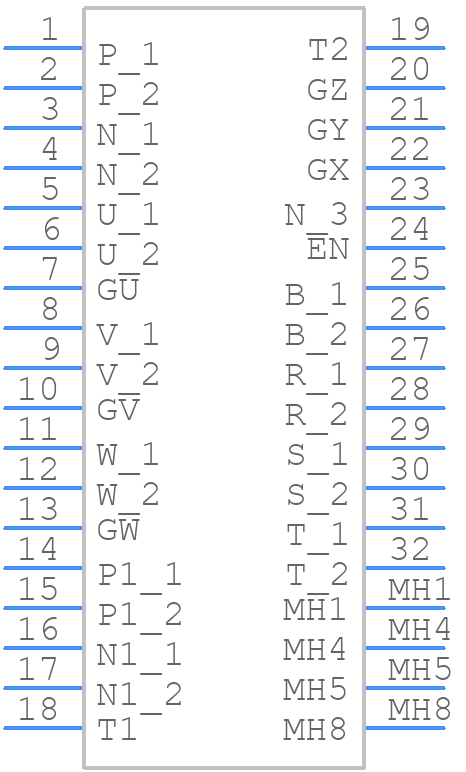

7MBR100VR120-50 Details

• Manufacturer Part Number:

  7MBR100VR120-50

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Pin Count:

  32

• ECCN Code:

  EAR99

• Manufacturer:

  Fuji Electric Co Ltd

• YTEOL:

  5.35

• Case Connection:

  ISOLATED

• Collector Current-Max (IC):

  100 A

• Collector-Emitter Voltage-Max:

  1200 V

• Configuration:

  COMPLEX

• Gate-Emitter Voltage-Max:

  20 V

• JESD-30 Code:

  R-XUFM-X21

• Number of Elements:

  7

• Number of Terminals:

  21

• Operating Temperature-Max:

  125 °C

• Package Body Material:

  UNSPECIFIED

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  520 W

• Qualification Status:

  Not Qualified

• Surface Mount:

  NO

• Terminal Form:

  UNSPECIFIED

• Terminal Position:

  UPPER

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Transistor Application:

  POWER CONTROL

• Transistor Element Material:

  SILICON

• Turn-off Time-Nom (toff):

  530 ns

• Turn-on Time-Nom (ton):

  390 ns

• VCEsat-Max:

  2.7 V
