A good PCB layout for optimal thermal performance involves placing thermal vias under the package, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the package.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable heat sink, and implement thermal management techniques such as thermal throttling or shutdown. Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and heat sink.
Operating the device at the maximum junction temperature (Tj) of 150°C can reduce its lifespan and reliability. It's recommended to operate the device at a lower temperature, typically below 125°C, to ensure optimal performance and longevity.
To handle ESD protection for the 7SB385DTT1G, it's recommended to follow proper handling and storage procedures, use ESD-protective packaging, and implement ESD protection circuits or devices in the system design. Additionally, consider using a TVS (transient voltage suppressor) diode or other ESD protection devices.
When powering up the 7SB385DTT1G, it's essential to follow a controlled power sequencing and supply voltage ramp-up to prevent damage or malfunction. The recommended power-up sequence is to apply the input voltage (VIN) before the enable signal (EN), and to ramp up the supply voltage slowly (typically 10-20 ms) to prevent inrush currents.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
7SB385DTT1G Overview

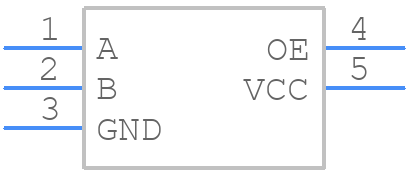

Use the download button to access the 7SB385DTT1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 7SB38,
or try a keyword search, such as Bus Driver/Transceivers
