8-1393483-7 - TE Connectivity

Description: Body Features: Rear Shell Plating Material Tin | Rear Shell Material Steel | Front Shell Material Steel | Front Shell Plating Material Tin | Configuration Features: PCB Mount Orientation Vertical | Number of Positions 9 | Contact Features: Contact Current Rating (Max) 3 AMP | Contact Type Pin | Contact Size Size 20 | Housing Features: Centerline (Pitch) 2.74 MM | Centerline (Pitch) .11 INCH | Mechanical Attachment: Connector Mounting Type Board Mount | Operation/Application: Circuit Application Signal | Pro

Download 8-1393483-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
8-1393483-7 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

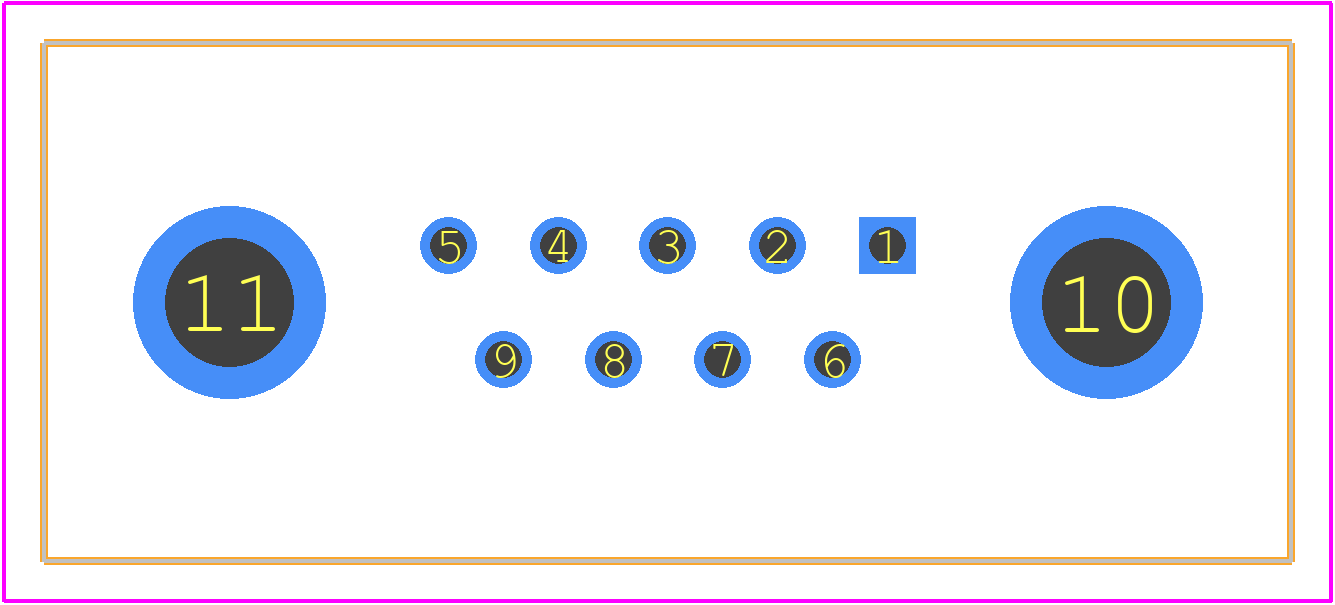

8-1393483-7 - TE Connectivity PCB footprint - Other - Other - 8-1393483-7-1
click to zoom
3D Models
8-1393483-7 - TE Connectivity - 3D model - Other - 8-1393483-7-1
click to zoom

8-1393483-7 Details

  • Manufacturer Part Number:

    8-1393483-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: DIN 41652, SHIELDED

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    3 A

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Terminal Pitch:

    2.74 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0
