- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 8-1734774-1
- Part Number 8-1734774-1
- Manufacturer TE Connectivity
- Pin Count 64
- Part Category Connector
- Package Category Other

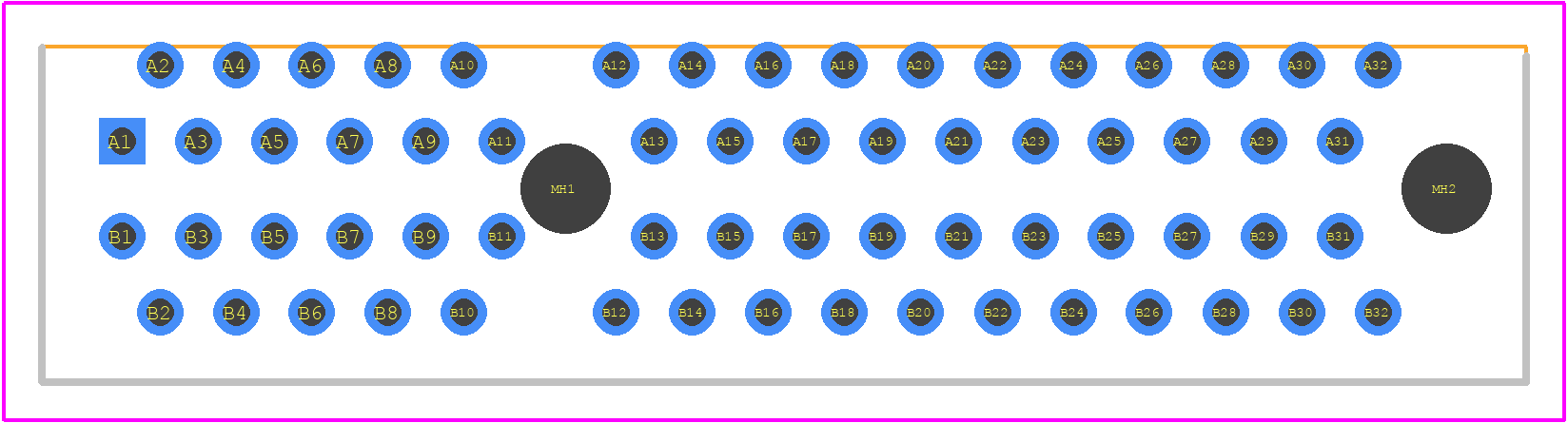

- Footprint Name Other - 8-1734774-1-1
- Released Date Nov 24, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
8-1734774-1 Details
-
Manufacturer Part Number:
8-1734774-1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
7 Weeks, 5 Days
-
Manufacturer:
TE Connectivity
-
Body Breadth:
0.346 inch
-
Body Depth:
0.394 inch
-
Body Length:
1.535 inch
-
Connector Type:
CARD EDGE CONNECTOR
8-1734774-1 Frequently Asked Questions (FAQs)
-
The recommended torque for the 8-1734774-1 connector is typically between 0.5 to 1.5 Nm (4.4 to 13.3 in-lbs), but it's best to consult the TE Connectivity application notes or contact their technical support for specific guidance.
-
Yes, the 8-1734774-1 connector is designed to withstand high-vibration environments, but it's essential to ensure proper mounting and securement to prevent damage or disconnection. Consult TE Connectivity's vibration testing data and application notes for more information.
-
The 8-1734774-1 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand humid environments, but it's crucial to follow TE Connectivity's environmental testing data and application notes to ensure reliable performance.
-
The 8-1734774-1 connector is rated for a minimum of 500 mating cycles, but this can vary depending on the application, environment, and usage. Consult TE Connectivity's product documentation and application notes for more information.
-
The 8-1734774-1 connector is designed to be compatible with other TE Connectivity products, but compatibility with third-party components should be verified through testing and validation. Consult TE Connectivity's product documentation and application notes for guidance.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
8-1734774-1 Overview
Use the download button to access the 8-1734774-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8-173,
or try a keyword search, such as Headers and Edge Type Connectors
