8-338728-6 - TE Connectivity

Description: Body Features: Connector Profile Standard | Primary Product Color Red | Daisy Chain Without | Configuration Features: Number of Rows 2 | Number of Positions 16 | PCB Mount Orientation Vertical | Contact Features: Contact Current Rating (Max) 1 AMP | Contact Mating Area Plating Material Thickness 3 – 5 MICM | Contact Mating Area Plating Material Tin | Contact Type Pin | Contact Base Material Copper Alloy | PCB Contact Termination Area Plating Material Tin | Contact Mating Area Plating Material Thickness 11

Download 8-338728-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
8-338728-6 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

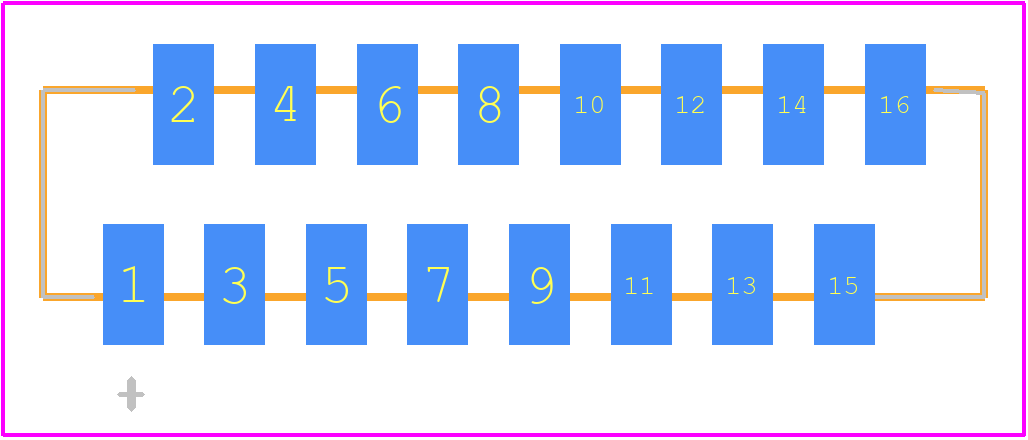

8-338728-6 - TE Connectivity PCB footprint - Other - Other - 8-338728-6-2
click to zoom
3D Models
8-338728-6 - TE Connectivity - 3D model - Other - 8-338728-6-2
click to zoom

8-338728-6 Details

  • Manufacturer Part Number:

    8-338728-6

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.4

  • Body Breadth:

    0.203 inch

  • Body Depth:

    0.18 inch

  • Body Length:

    0.925 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    STAGGERED

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    RED

  • Insulator Material:

    POLYAMIDE46

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.059 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Option 2:

    FRICTION LOCK

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    4.4958 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    196.85u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    1 A

  • Rated Voltage:

    100 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

8-338728-6 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 8-338728-6 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The 8-338728-6 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor or harsh environment applications, it's essential to consider additional protection measures, such as sealing or conformal coating, to ensure reliability.
  • While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 8-338728-6 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and to follow proper wire stripping and termination procedures to prevent damage or reliability issues.
  • Yes, it's essential to follow proper PCB layout guidelines for the 8-338728-6 connector to ensure reliable connections and prevent damage. This includes maintaining a minimum clearance of 1.5 mm between the connector and other components, and ensuring the PCB material can withstand the connector's operating temperature range.
