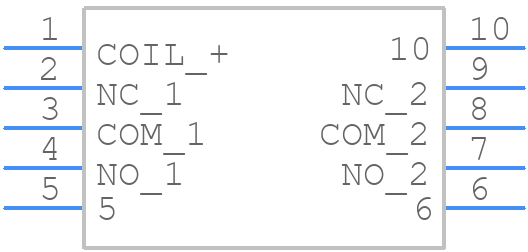

Symbol

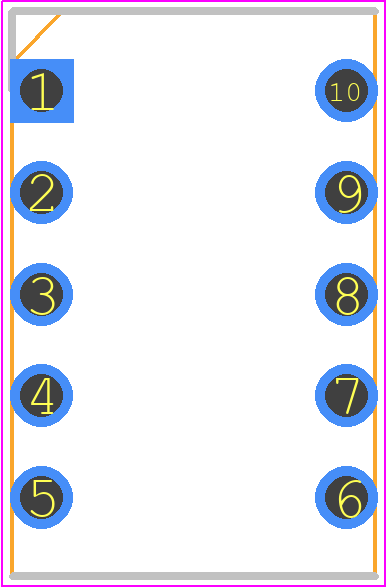

PCB Footprints
- Datasheet
- Stock & Prices $ Price & Stock for 800-4518
- Part Number 800-4518
- Manufacturer RS Pro
- Pin Count 10
- Part Category Relay or Contactor
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - 800-4518
- Released Date Jan 19, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
800-4518 Details
-
Manufacturer Part Number:
800-4518
-
Manufacturer:
RS Pro
Trust Checks
Expert Contribution
System Verified
Community Approved
800-4518 Overview
Use the download button to access the 800-4518 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 800-4,
or try a keyword search, such as Wires and Cables
