Description:The IDT CPS-1616 provides a full, non-blocking bandwidth of 80 Gbps for up to 16 ports. The device uses a 5th generation switch fabric, building upon Gen1 CPS and Tsi switching architectures. This new switch uses patent pending features to minimize latency, ensure scheduling fairness, and provide superior multicast throughput. The CPS-1616's 6.25 Gbaud SerDes is ideal for doing both local interconnect with low power, while also driving backplane links. This performance is realized over twice the transmissio
Renesas provides a recommended PCB layout guide in their application note (AP-1616) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The 80HCPS1616CHRI has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB to dissipate heat. Additionally, Renesas recommends using thermal vias and a heat sink to further improve thermal management.
While the datasheet specifies a maximum clock frequency of 100 MHz, the actual operating frequency may be limited by the system design and PCB layout. Renesas recommends performing signal integrity analysis and simulation to determine the maximum operating frequency for a specific design.
Renesas recommends following best practices for signal integrity, including using controlled impedance traces, minimizing trace length and stubs, and using termination resistors as needed. Additionally, Renesas provides signal integrity models and simulation tools to help designers optimize their designs.
The 80HCPS1616CHRI requires a specific power sequencing order to ensure proper operation. Renesas recommends powering up the VCC supply before the VREF supply, and ensuring that the VCC supply is stable before applying clock signals.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
80HCPS1616CHRI Overview

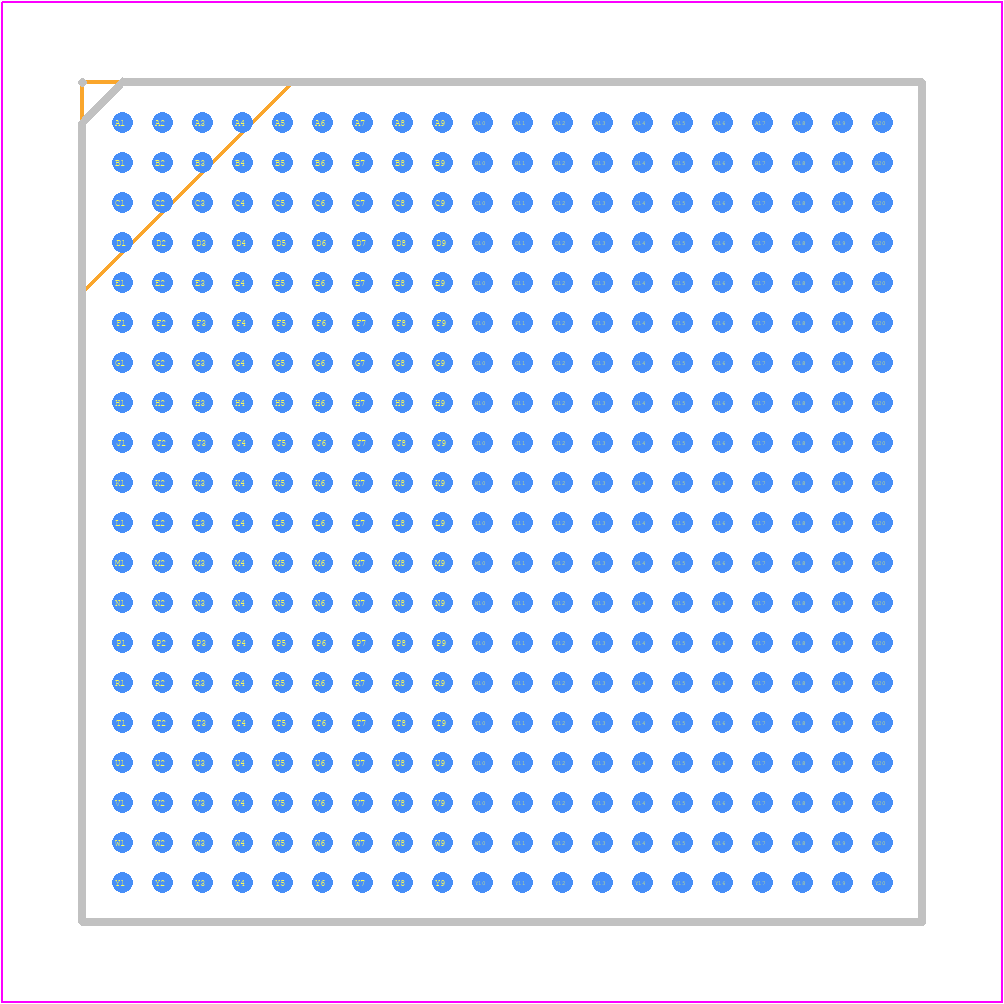

Use the download button to access the 80HCPS1616CHRI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 80HCP,
or try a keyword search, such as Telecom Switching Circuits
