80HCPS1848CBRI - Renesas Electronics

Description: The IDT CPS-1848 provides a full, non-blocking bandwidth of 240 Gbps for up to 18 logical ports. The CPS-1848 device utilizes a 5th generation switch fabric, building upon Gen1 CPS and Tsi switching architectures. This new switch uses patent pending features to minimize latency, ensure scheduling fairness, and provide superior multicast throughput. The CPS-1848's 6.25 Gbaud SerDes is ideal for backplanes, yet can run even lower power for local connectivity.This performance is realized over twice the transmi

Download 80HCPS1848CBRI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

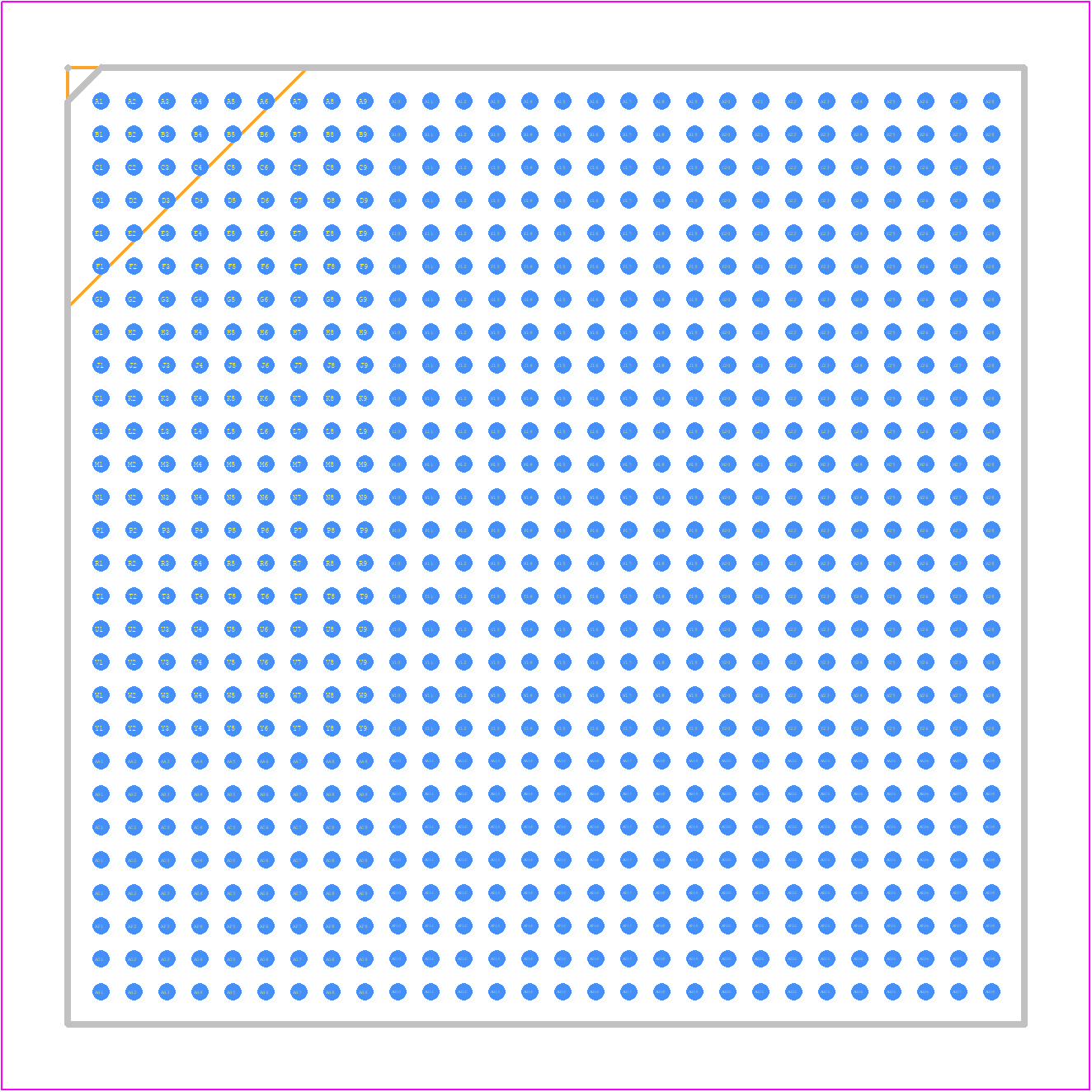

80HCPS1848CBRI - Renesas Electronics PCB footprint - BGA - BGA - HMG784
click to zoom
3D Models
80HCPS1848CBRI - Renesas Electronics  - 3D model - BGA - HMG784
click to zoom

80HCPS1848CBRI Details

  • Manufacturer Part Number:

    80HCPS1848CBRI

  • Brand Name:

    Renesas

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    FCBGA

  • Pin Count:

    784

  • Manufacturer Package Code:

    BR784H1

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    S-PBGA-B784

  • JESD-609 Code:

    e1

  • Length:

    29 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    784

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA784,28X28,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    3.44 mm

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    PACKET ROUTING SWITCH

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    29 mm

80HCPS1848CBRI Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 80HCPS1848CBRI is 4.5V to 5.5V.
  • The 80HCPS1848CBRI has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB to dissipate heat. Additionally, ensure good airflow around the device and consider using a heat sink if necessary.
  • The maximum clock frequency supported by the 80HCPS1848CBRI is 48 MHz.
  • To configure the 80HCPS1848CBRI for low-power operation, use the power-down mode (PD) and idle mode (IDLE) instructions to reduce power consumption. Additionally, consider using the clock gating feature to disable clocks to unused modules.
  • The maximum current rating for the 80HCPS1848CBRI is 100 mA per pin, with a total current rating of 500 mA for the entire device.
