8100617EA/MLB footprint, schematic symbol and 3D model by Renesas Electronics

8100617EA/MLB - Renesas Electronics

Description: This CMOS analog switch offers low-resistance switching performance for analog voltages up to the supply rails and for signal currents up to 70mA. “ON” resistance is low and stays reasonably constant over the full range of operating signal voltage and current. RON remains exceptionally constant for input voltages between +5V and -5V and currents up to 50mA. Switch impedance also changes very little over temperature, particularly between 0°C and +75°C. RON is nominally 25Ω for the HI-5046A/883. This device p

Download 8100617EA/MLB Model

Schematic
symbols

PCB
footprints

3D
models

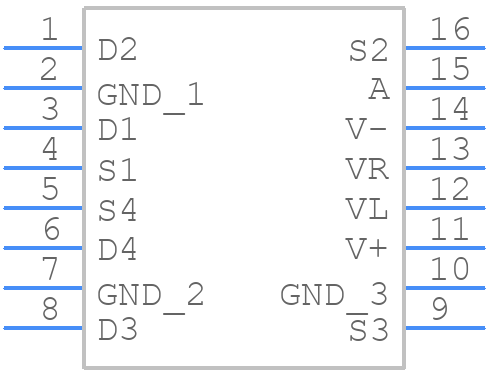

Symbol

click to zoom

PCB Footprints

8100617EA/MLB - Renesas Electronics PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - F16.3

click to zoom

3D Models

8100617EA/MLB - Renesas Electronics - 3D model - Ceramic Dual-In-Line Packages - F16.3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 8100617EA/MLB
Part Number 8100617EA/MLB
Manufacturer Renesas Electronics
Pin Count 16
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - F16.3
Released Date Dec 10, 2019
Last Modified Date Jan 29, 2025 12:30 PM UTC
Pinout / Pin List Click Here (Member Only)

8100617EA/MLB Details

Manufacturer Part Number:
8100617EA/MLB
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

8100617EA/MLB Overview

Use the download button to access the 8100617EA/MLB schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 81006, or try a keyword search, such as Multiplexers or Switches
