81050-600203-RB - 3M

Description: 3M 810, 1.27mm Pitch, 50 Way, 2 Row, Straight PCB Header, Through Hole

Download 81050-600203-RB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
81050-600203-RB - 3M - PCB symbol
click to zoom
PCB Footprints

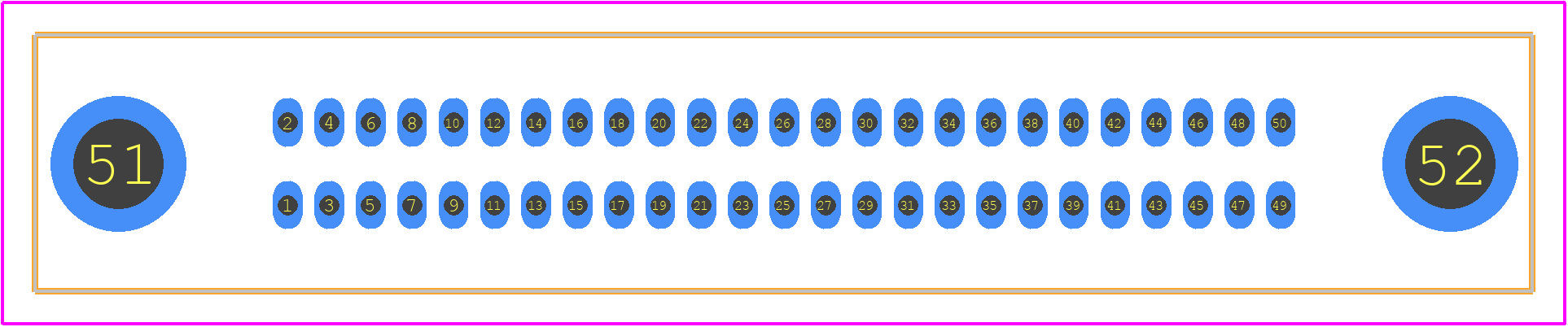

81050-600203-RB - 3M PCB footprint - Other - Other - 81050-600203-RB-2
click to zoom
3D Models
81050-600203-RB - 3M - 3D model - Other - 81050-600203-RB-2
click to zoom

81050-600203-RB Details

  • Manufacturer Part Number:

    81050-600203-RB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    13 Weeks, 4 Days

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    9.15

  • Additional Feature:

    3M, POLARIZED

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.31 inch

  • Body Depth:

    0.405 inch

  • Body Length:

    1.81 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    700VAC V

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.05 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    30u inch

  • Polarization Key:

    SHRD TRIPOLARIZED

  • Rated Current (Signal):

    0.75 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.09 inch

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0
