810N252CKI-02LF - Renesas Electronics

Description: The 810N252I-02 device uses IDT's fourth generation FemtoClock® NG technology for optimal high clock frequency and low phase noise performance, combined with a low power consumption and high power supply noise rejection. The 810N252I-02 is a PLL based synchronous multiplier that is optimized for PDH or SONET to Ethernet clock jitter attenuation and frequency translation.The 810N252I-02 contains two internal frequency multiplication stages that are cascaded in series. The first stage is a jitter attenuator,

Download 810N252CKI-02LF Model

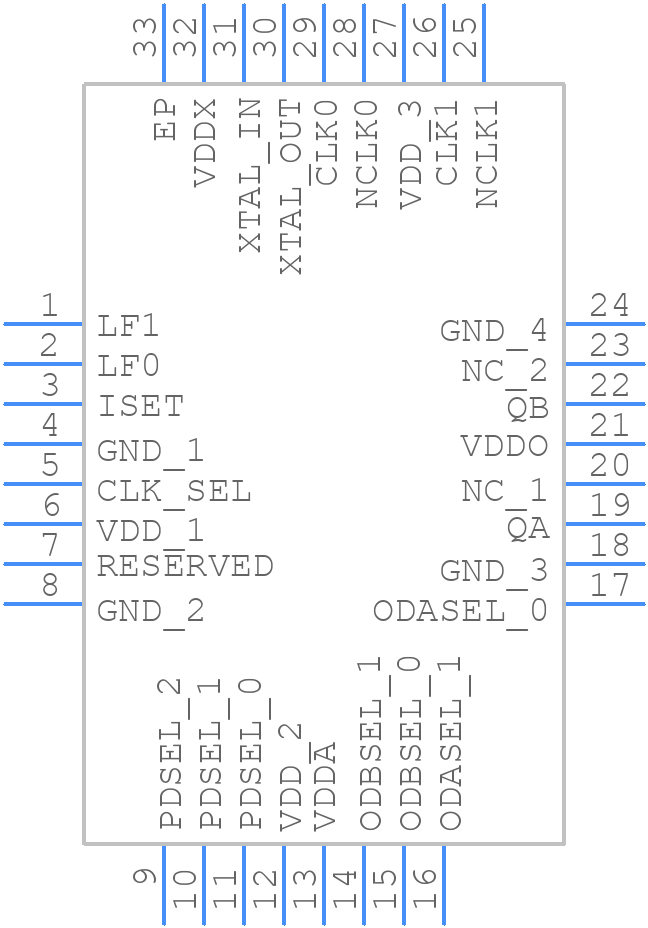

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
810N252CKI-02LF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (32-pin 5mm x 5mm QFN)
click to zoom
3D Models
810N252CKI-02LF - Renesas Electronics  - 3D model - Quad Flat No-Lead - (32-pin 5mm x 5mm QFN)
click to zoom

810N252CKI-02LF Details

  • Manufacturer Part Number:

    810N252CKI-02LF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    VFQFPN

  • Package Description:

    VFQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    NLG32P1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    312.5 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    155.52 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    230 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER
