A symmetrical layout with a central ground plane and minimal signal trace length is recommended. Keep the input and output traces separate and avoid crossing them to minimize noise and crosstalk.
Use a 10uF to 22uF ceramic capacitor between the VCC and GND pins, and a 100nF to 1uF capacitor between the VIN and GND pins. Place the capacitors as close to the IC as possible.
The 8114-RC can operate from -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Ensure proper thermal management to prevent overheating.
Yes, the 8114-RC is suitable for high-reliability and aerospace applications. However, it's essential to follow the manufacturer's guidelines for screening, testing, and qualification. Consult with Bourns Inc for specific requirements.
Start by verifying the power supply voltage, input signal, and output load. Check for proper decoupling, PCB layout, and thermal management. Use an oscilloscope to analyze the input and output waveforms. Consult the datasheet and application notes for troubleshooting guides.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
8114-RC Overview

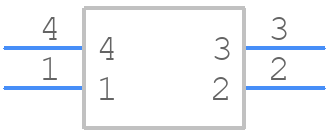

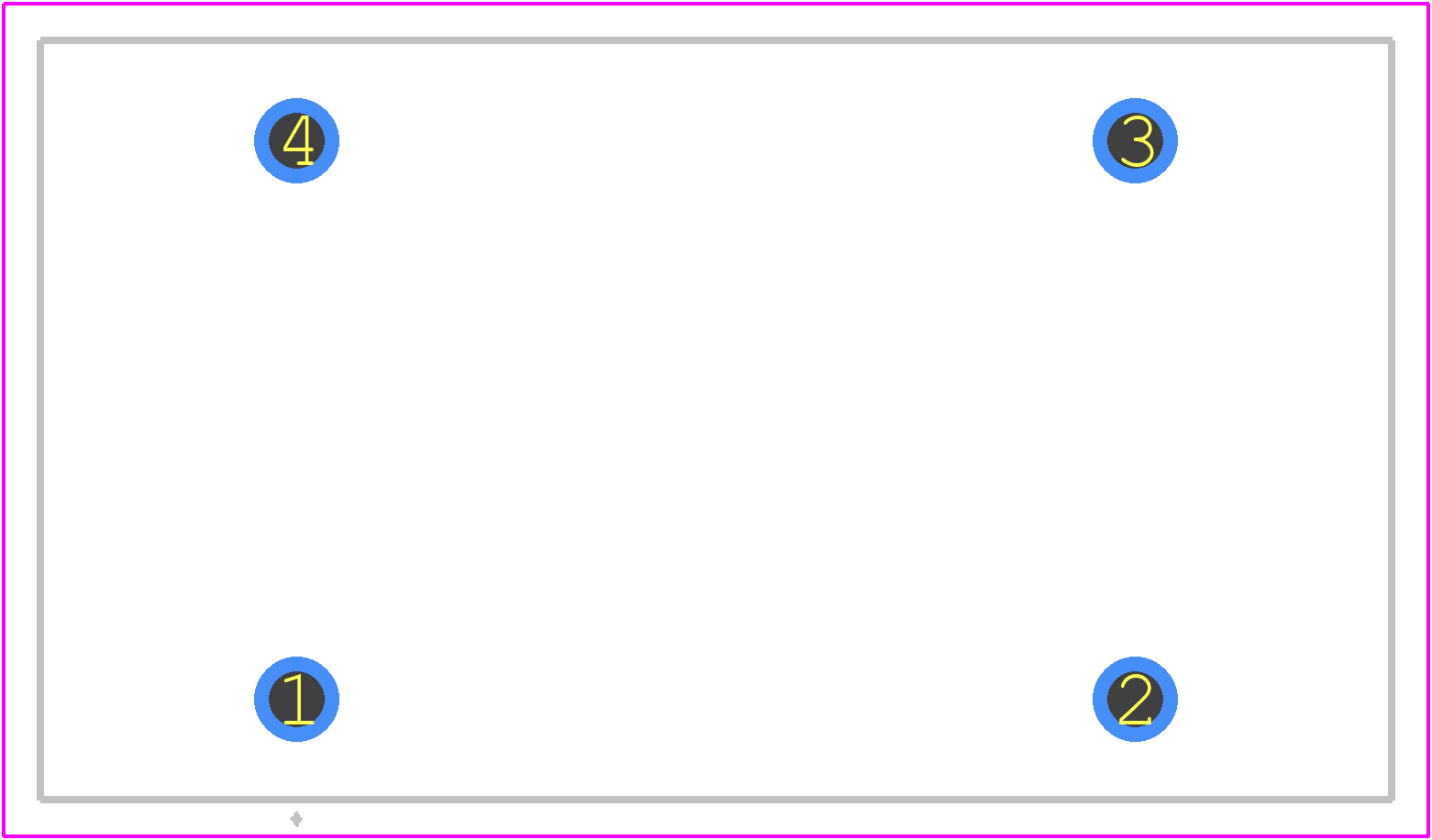

Use the download button to access the 8114-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8114-,
or try a keyword search, such as Data Line Filters
