8121-RC - Bourns

Description: Common Mode Inductors (with Optional Header)

Download 8121-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

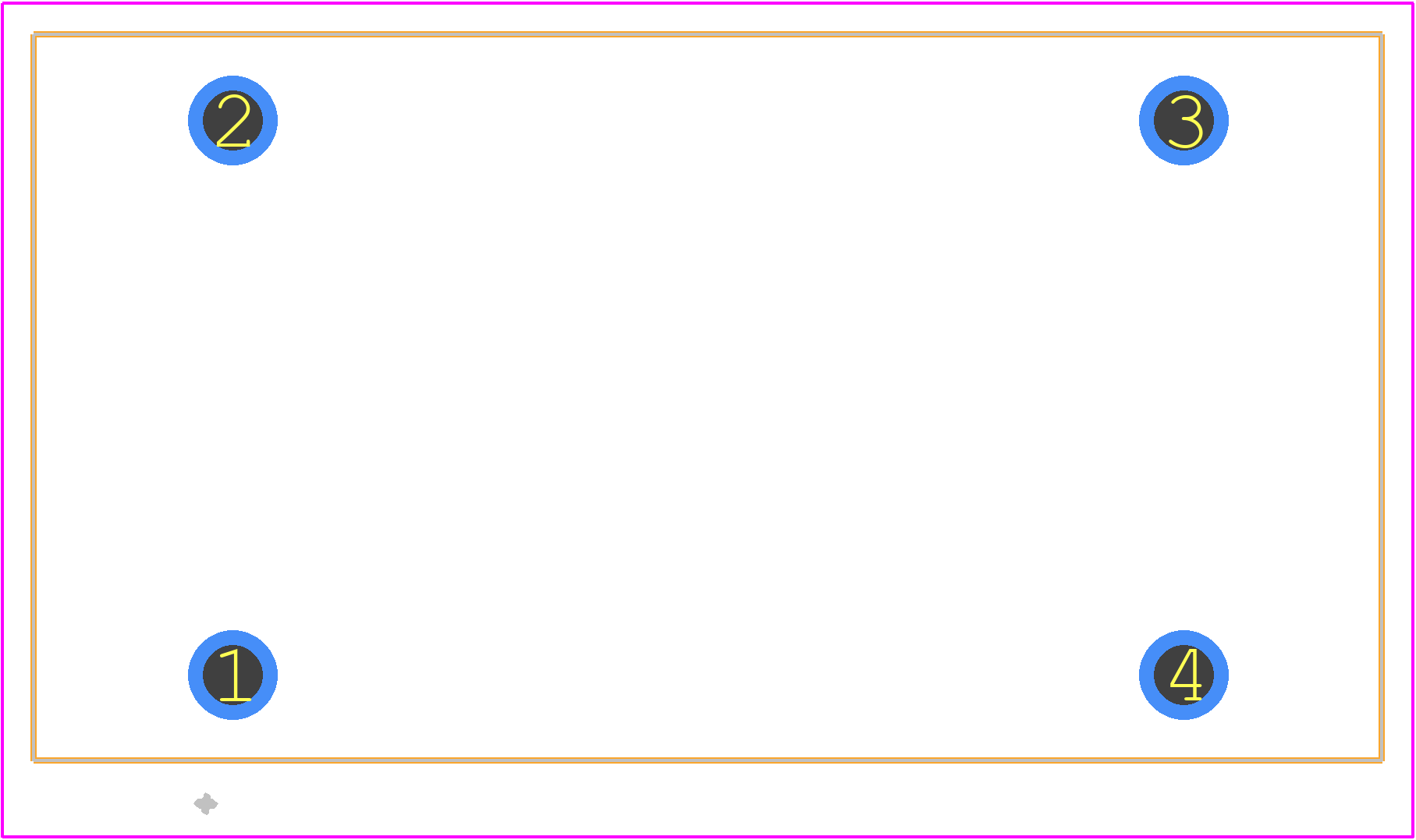

8121-RC - Bourns PCB footprint - Other - Other - 8121-RC-2
click to zoom
3D Models
8121-RC - Bourns  - 3D model - Other - 8121-RC-2
click to zoom

8121-RC Details

  • Manufacturer Part Number:

    8121-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7

  • Approvals:

    UL

  • DC Resistance-Max:

    0.007 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    41.91 mm

  • Inductance:

    1000 µH

  • JESD-609 Code:

    e3

  • Length:

    43.18 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Rated Current:

    20 A

  • Terminal Finish:

    Tin (Sn)

  • Width:

    22.86 mm
