8121SD9AGE - LITTELFUSE

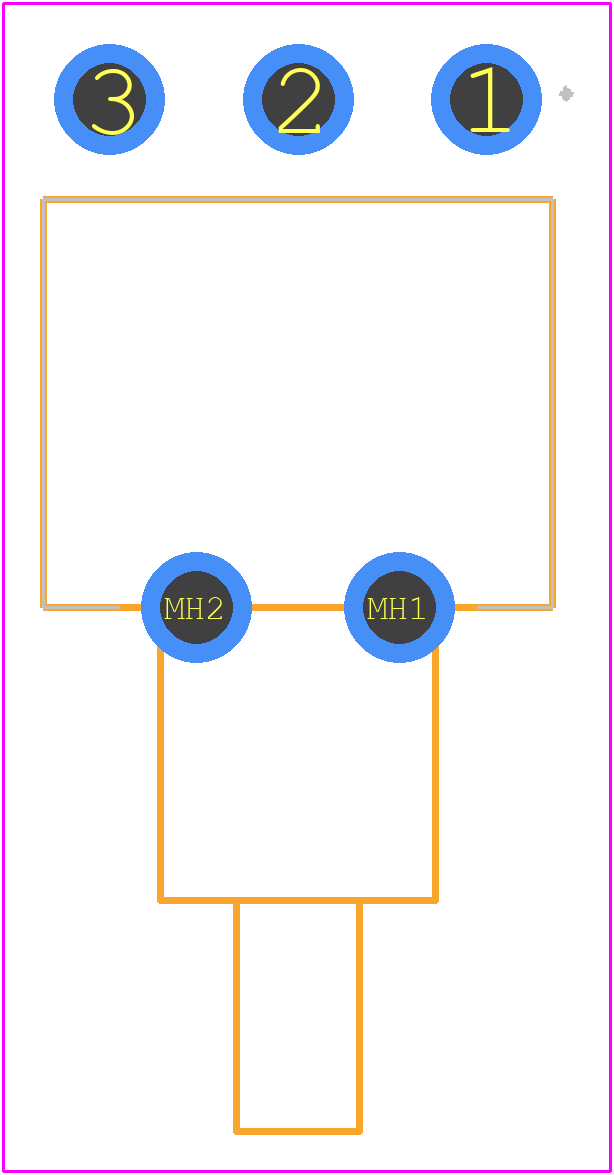

8121SD9AGE Details

• Manufacturer Part Number:

  8121SD9AGE

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.70.00

• Manufacturer:

  Littelfuse Inc

• Actuator Length:

  0.244 inch

• Actuator Travel:

  5.7912 mm

• Actuator Type:

  PLUNGER

• Additional Feature:

  PANEL MOUNTABLE

• Body Breadth:

  12.7 mm

• Body Height:

  6.86 mm

• Body Length or Diameter:

  12.7 mm

• Bushing Length:

  0.28 inch

• Bushing Type:

  UNTHREADED

• Center Contact Plating:

  GOLD OVER NICKEL

• Contact (AC) Max Rating R Load:

  1A@120VAC

• Contact Current(AC)-Max:

  1 A

• Contact Current(DC)-Max:

  1 A

• Contact (DC) Max Rating R Load:

  1A@28VDC

• Contact Function:

  ON-(ON)

• Contact Resistance:

  0.1 mΩ

• Contact Timing:

  BREAK-BEFORE-MAKE

• Contact Voltage(AC)-Max:

  120 V

• Contact Voltage(DC)-Max:

  28 V

• Dielectric Withstand Volts:

  1000VAC V

• Electrical Life:

  60000 Cycle(s)

• End Contact Plating:

  GOLD OVER NICKEL

• Housing Material:

  STAINLESS STEEL

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  1000000000 Ω

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -30 °C

• PCB Hole Count:

  3

• Sealing:

  EPOXY TERMINAL SEALED

• Solderability:

  MIL-STD

• Surface Mount:

  NO

• Switch Action:

  MOMENTARY

• Switch Function:

  SPDT

• Switch Type:

  MINIATURE SWITCH

• Terminal Finish:

  Gold (Au) - with Nickel (Ni) barrier

• Terminal Length:

  0.138 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER
