Part Image

820M1-6000 - TE Connectivity

Description: Body Features: Primary Product Material Ceramic | Number of Sensing Axes Uniaxial | Product Weight 1 G | Product Weight .04 OZ | Electrical Characteristics: Full Scale Output Voltage ±1.25 VDC | Excitation Voltage 2.8 – 5.5 VDC | Industry Standards: IP Rating IP68 | Mechanical Attachment: Mounting Type Solder | Other: Overall Acceleration Range (±) 6000 GFORCE | Nonlinearity ±1 PCTFSO | Sensitivity Range .21 MVG | Acceleration Range (±) 6000 GFORCE | Sensitivity .21 MVG | Product Type Features: Vibrat

Download 820M1-6000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

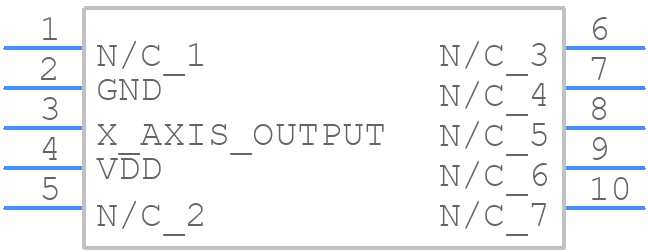

820M1-6000 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
820M1-6000 - TE Connectivity PCB footprint - Other - Other - 820M1-6000-4
click to zoom
3D Models
820M1-6000 - TE Connectivity - 3D model - Other - 820M1-6000-4
click to zoom

820M1-6000 Details

  • Manufacturer Part Number:

    820M1-6000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    TE Connectivity

  • Frequency Response:

    10000 Hz

  • Linearity (%):

    1 %

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Sensitivity (mV/G):

    0.21 mV/G

  • Sensors/Transducers Type:

    ACCELEROMETER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

820M1-6000 Overview

Use the download button to access the 820M1-6000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 820M1, or try a keyword search, such as Other Sensors/Transducers

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
