828-AG11D-LF - TE Connectivity

Description: IC & Component Sockets DIP .6CL 28P S/M OFRM AU/SN

Download 828-AG11D-LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
828-AG11D-LF - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

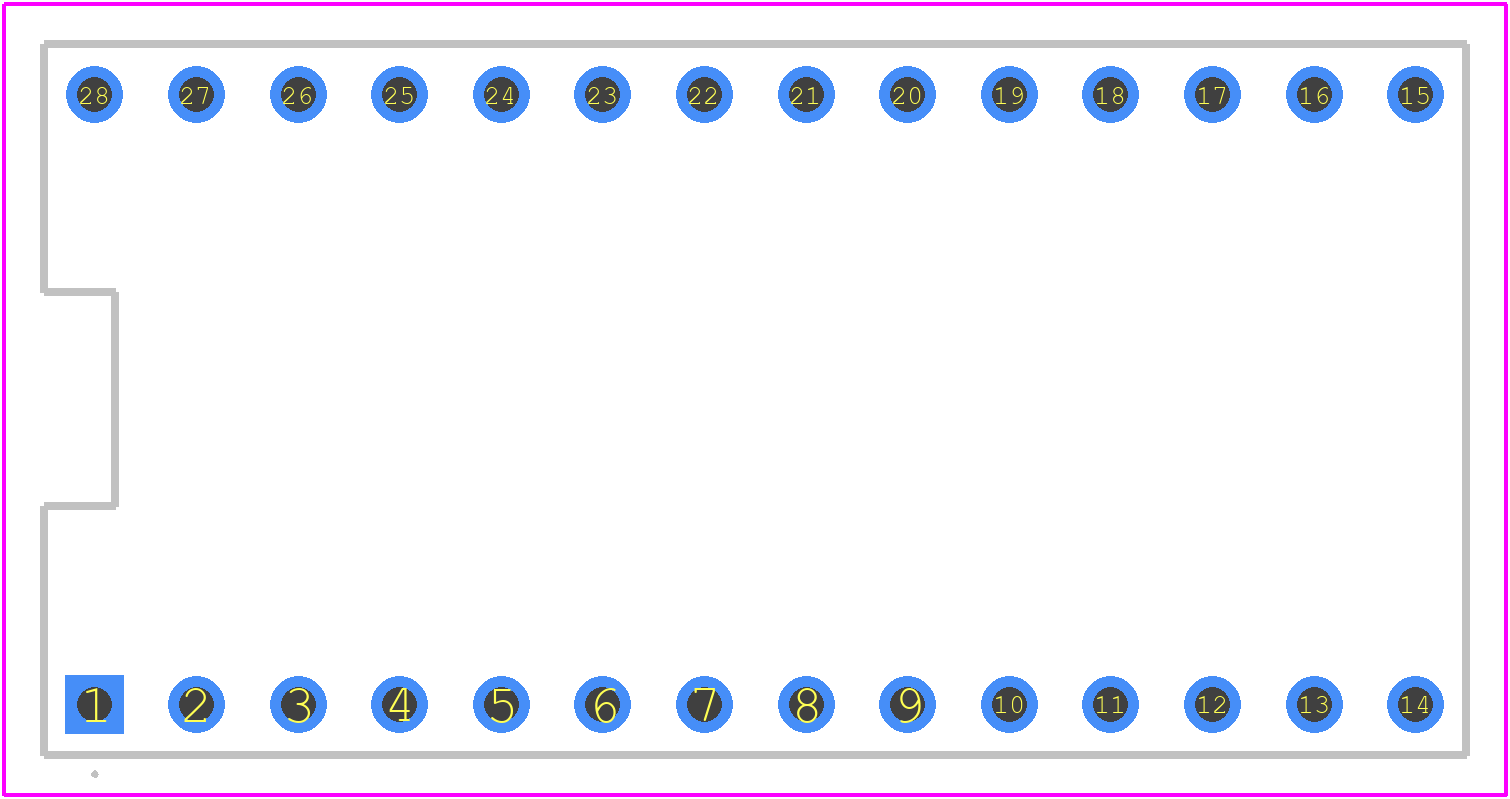

828-AG11D-LF - TE Connectivity PCB footprint - Other - Other - 828-AG11D-LF-1
click to zoom
3D Models
828-AG11D-LF - TE Connectivity - 3D model - Other - 828-AG11D-LF-1
click to zoom

828-AG11D-LF Details

  • Manufacturer Part Number:

    828-AG11D-LF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Depth:

    0.105 inch

  • Body Length:

    1.4 inch

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT APPLICABLE

  • Current Rating:

    3 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP28

  • Housing Material:

    THERMOPLASTIC

  • Insulation Resistance:

    5000000000 Ω

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Row Spacing:

    0.6000000000000001 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

828-AG11D-LF Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw locks on the 828-AG11D-LF connector.
  • Yes, the 828-AG11D-LF connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, automotive, and industrial control systems.
  • The operating temperature range for the 828-AG11D-LF connector is -55°C to 125°C (-133°F to 257°F).
  • Yes, the 828-AG11D-LF connector is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
  • The mating cycle life of the 828-AG11D-LF connector is 500 cycles minimum, ensuring reliable connections over an extended period.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

828-AG11D-LF Overview

Use the download button to access the 828-AG11D-LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 828-A, or try a keyword search, such as Sockets and Chip Carriers

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
