82P33814ANLG - Renesas Electronics

Description: The 82P33814 Synchronization Management Unit (SMU) provides tools to manage timing references, clock sources and timing paths for IEEE 1588 and Synchronous Ethernet (SyncE) based clocks. The device supports up to three independent timing paths that control: IEEE 1588 clock synthesis; SyncE clock generation; and general purpose frequency translation.The device supports physical layer timing with Digital PLLs (DPLLs) and it supports packet based timing with Digitally Controlled Oscillators (DCOs). Input-to-in

Download 82P33814ANLG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

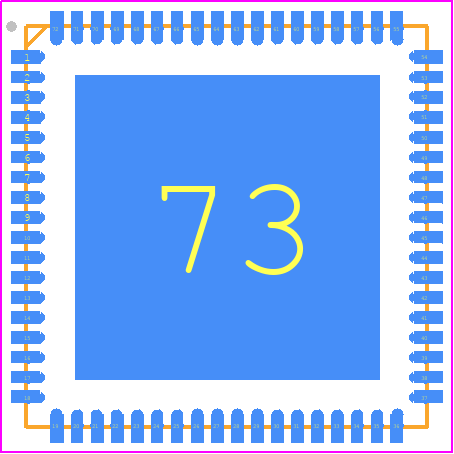

82P33814ANLG - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 2-VFQFPN, Package Outline Drawing 10.0 x 10.0 x 0.90 mm Body, Epad 7.50 x 7.50 mm 0.50mm Pitch
click to zoom
3D Models
82P33814ANLG - Renesas Electronics  - 3D model - Quad Flat No-Lead - 2-VFQFPN, Package Outline Drawing 10.0 x 10.0 x 0.90 mm Body, Epad 7.50 x 7.50 mm 0.50mm Pitch
click to zoom

82P33814ANLG Details

  • Manufacturer Part Number:

    82P33814ANLG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Package Description:

    QFN-72

  • Pin Count:

    72

  • Manufacturer Package Code:

    NLG72P2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • JESD-30 Code:

    S-XQCC-N72

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    72

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    650 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC72,.4SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    650 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    361.9 mA

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, ETHERNET

82P33814ANLG Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APL-082014) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The 82P33814ANLG has a built-in power sequencing feature. To implement it, connect the PSON pin to a logic high signal, and the device will sequence the power rails according to the internal timing diagram. Additionally, you can use external resistors and capacitors to adjust the sequencing timing.
  • The maximum output current capability of the 82P33814ANLG is dependent on the specific output rail and the thermal design of the system. According to the datasheet, the maximum output current is 10A for VCC, 6A for VTT, and 3A for VDDQ. However, it's recommended to consult with Renesas support or perform thermal simulations to determine the maximum safe operating current for your specific application.
  • Renesas provides a troubleshooting guide in their application note (APL-082015) which covers common issues, such as output voltage errors, overcurrent protection, and thermal shutdown. Additionally, you can use oscilloscopes and logic analyzers to debug the device's behavior and identify the root cause of the issue.
  • Yes, the 82P33814ANLG is compatible with lead-free soldering processes. Renesas has qualified the device for use with lead-free soldering temperatures up to 260°C. However, it's recommended to follow the recommended soldering profile and guidelines to ensure reliable assembly and minimize the risk of damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

82P33814ANLG Overview

Use the download button to access the 82P33814ANLG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 82P33, or try a keyword search, such as Clock Generators
