8302AMI-01LF - Renesas Electronics

Description: The 8302I-01 is a low skew, 1-to-2 LVCMOS/LVTTL Fanout Buffer w/Complementary Output. The 8302I-01 has a single ended clock input. The single ended clock input accepts LVCMOS or LVTTL input levels. The 8302I-01 is characterized at full 3.3V for input VDD, and mixed 3.3V and 2.5V for output operating supply modes (VDDO). Guaranteed output and part-to-part skew characteristics make the 8302I-01 ideal for clock distribution applications demanding well defined performance and repeatability.

Download 8302AMI-01LF Model

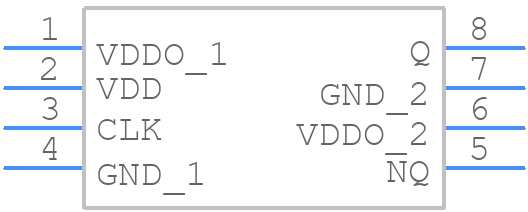

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
8302AMI-01LF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - (8 LD SOIC)
click to zoom
3D Models
8302AMI-01LF - Renesas Electronics  - 3D model - Small Outline Packages - (8 LD SOIC)
click to zoom

8302AMI-01LF Details

  • Manufacturer Part Number:

    8302AMI-01LF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATABLE AT 3.3V NOM

  • Family:

    8302

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.0001 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    13 mA

  • Prop. Delay@Nom-Sup:

    2.9 ns

  • Propagation Delay (tpd):

    2.9 ns

  • Same Edge Skew-Max (tskwd):

    0.25 ns

  • Seated Height-Max:

    1.95 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

  • fmax-Min:

    250 MHz

8302AMI-01LF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN3801EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement, to ensure optimal thermal performance.
  • Renesas recommends using an external overcurrent protection circuit, such as a fuse or a dedicated overcurrent protection IC, to prevent damage to the device. The datasheet provides guidelines for selecting the appropriate overcurrent protection component.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, Renesas recommends operating the device within a narrower range of -20°C to 85°C for optimal performance and reliability.
  • Renesas provides EMC design guidelines in their application note (R01AN3801EJ0100), which include recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference and ensure compliance with relevant EMC standards.
  • Renesas recommends a specific power-up sequence to ensure proper device operation and prevent damage. The recommended sequence is: VCC, then VDD, and finally the input signals. The datasheet provides more detailed information on the power-up sequence.
