8302AMILF - Renesas Electronics

Description: The 8302I is a low skew, 1-to-2 LVCMOS Fanout Buffer. The 8302I has a single ended clock input. The single ended clock input accepts LVCMOS or LVTTL input levels. The 8302I features a pair of LVCMOS outputs. The 8302I is characterized at full 3.3V for input VDD, and mixed 3.3V and 2.5V for output operating supply modes (VDDO). Guaranteedoutput and part-to-part skew characteristics make the 8302I ideal for clock distribution applications demanding well defined performance and repeatibility.

Download 8302AMILF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

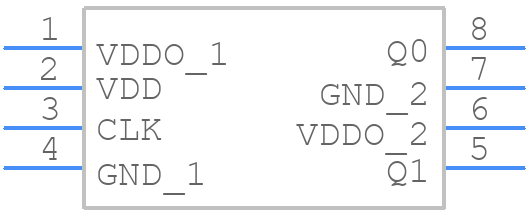

8302AMILF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
8302AMILF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - DCG8
click to zoom
3D Models
8302AMILF - Renesas Electronics - 3D model - Small Outline Packages - DCG8
click to zoom

8302AMILF Details

  • Manufacturer Part Number:

    8302AMILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    TIN

8302AMILF Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 8302AMILF is -40°C to 125°C.
  • The 8302AMILF has an internal POR circuit that resets the device when the power supply voltage rises above 1.5V. No external reset circuit is required.
  • The maximum clock frequency supported by the 8302AMILF is 32 MHz.
  • The 8302AMILF has several low-power modes, including idle mode, sleep mode, and stop mode. These modes can be configured using the Power Management Controller (PMC) registers.
  • The maximum current consumption of the 8302AMILF is 15mA at 3.3V and 32MHz clock frequency.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

8302AMILF Overview

Use the download button to access the 8302AMILF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8302A, or try a keyword search, such as Clock Drivers
