Description:830S21I is a 1-to-1 Differential-to- LVCMOS/ LVTTL translator and a member of the family of High Performance Clock Solutions from IDT. The differential input is highly flexible and can accept the following input types: LVPECL, LVDS, LVHSTL, SSTL and HCSL. The small 8-lead SOIC footprint makes this device ideal for use in applications with limited board space.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes thermal vias, heat sink recommendations, and PCB layer stack-up suggestions to ensure optimal thermal performance.
Renesas recommends a specific power sequencing scheme to ensure proper device operation. This information can be found in the device's user manual or application notes. Typically, the sequence involves powering up the VCC pin first, followed by the VDD pin, and then the other power pins.
Renesas recommends using high-quality, low-ESR decoupling capacitors with a value of 0.1uF to 1uF, placed as close as possible to the power pins. The specific capacitor values and placement can be found in the device's user manual or application notes.
Renesas provides guidelines for JTAG interface handling during production testing in their device-specific documentation. This includes information on JTAG pin connections, signal levels, and testing procedures to ensure reliable device programming and testing.
Renesas provides thermal design guidelines and thermal models for the 830S21AMILF in their documentation. Engineers should consider factors such as junction temperature, thermal resistance, and heat sink design to ensure reliable device operation in high-temperature environments.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
830S21AMILF Overview

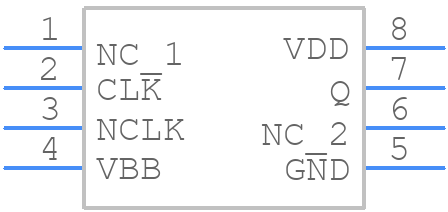

Use the download button to access the 830S21AMILF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 830S2,
or try a keyword search, such as Clock Drivers
