831-3622 - Wago

Description: THT male header; 1.0 x 1.2 mm solder pin; angled; 100% protected against mismating; Pin spacing 7.62 mm; 2-pole

Download 831-3622 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
831-3622 - Wago - PCB symbol
click to zoom

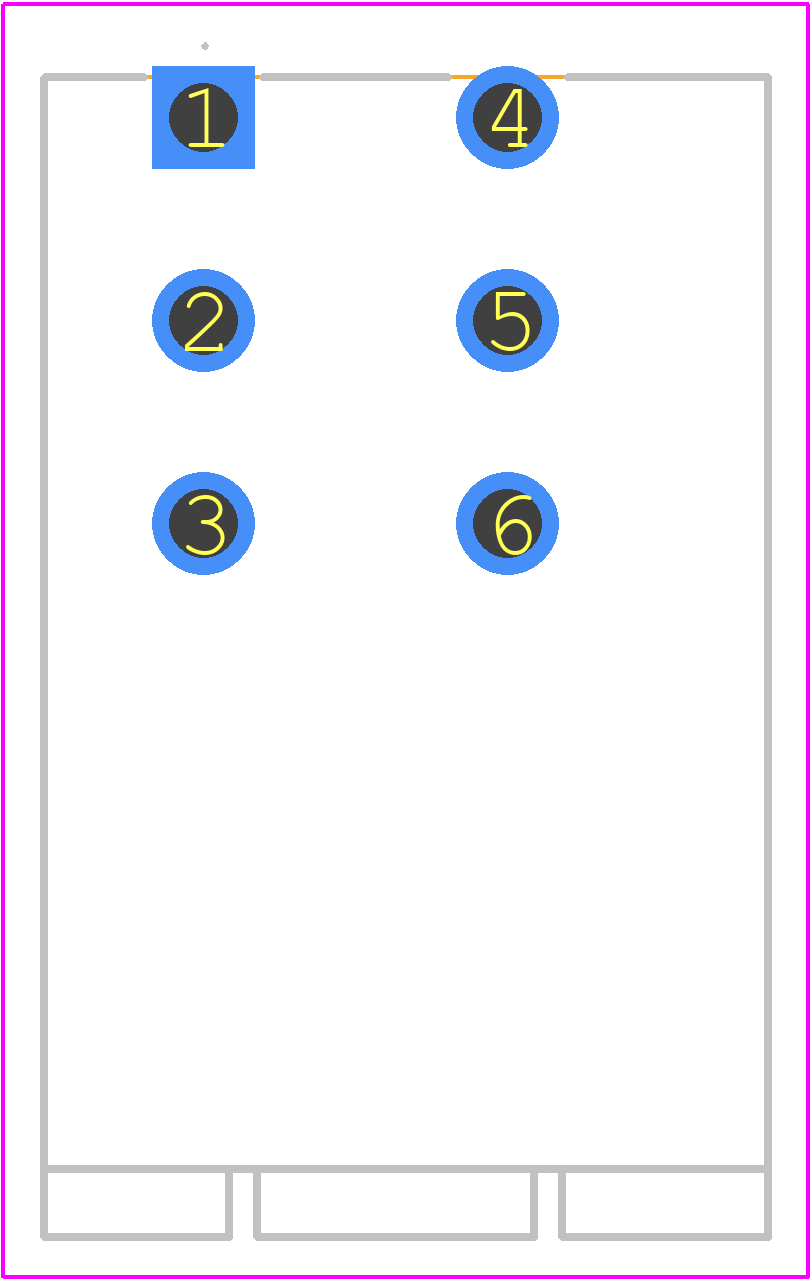

PCB Footprints
831-3622 - Wago PCB footprint - Other - Other - 831-3622-4
click to zoom
3D Models
831-3622 - Wago - 3D model - Other - 831-3622-4
click to zoom

831-3622 Details

  • Manufacturer Part Number:

    831-3622

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    2

  • Rated Current:

    50 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

831-3622 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 831-3622 connector is 0.6 Nm to 1.2 Nm, as specified in the WAGO installation instructions.
  • Yes, the 831-3622 connector is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6 and DIN EN 61373.
  • Yes, the 831-3622 connector is suitable for outdoor use. It has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for use in harsh environments.
  • Yes, the 831-3622 connector is designed to be used with stranded wire. However, it's recommended to use a wire with a minimum strand count of 30 to ensure reliable connections.
  • The maximum operating temperature of the 831-3622 connector is 125°C, making it suitable for use in high-temperature applications.
