831-3624 - Wago

Description: THT male header; 1.0 x 1.2 mm solder pin; angled; 100% protected against mismating; Pin spacing 7.62 mm; 4-pole

Download 831-3624 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

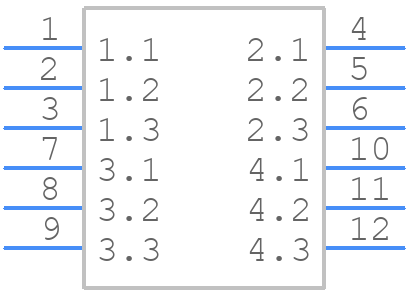

831-3624 - Wago - PCB symbol
click to zoom
PCB Footprints

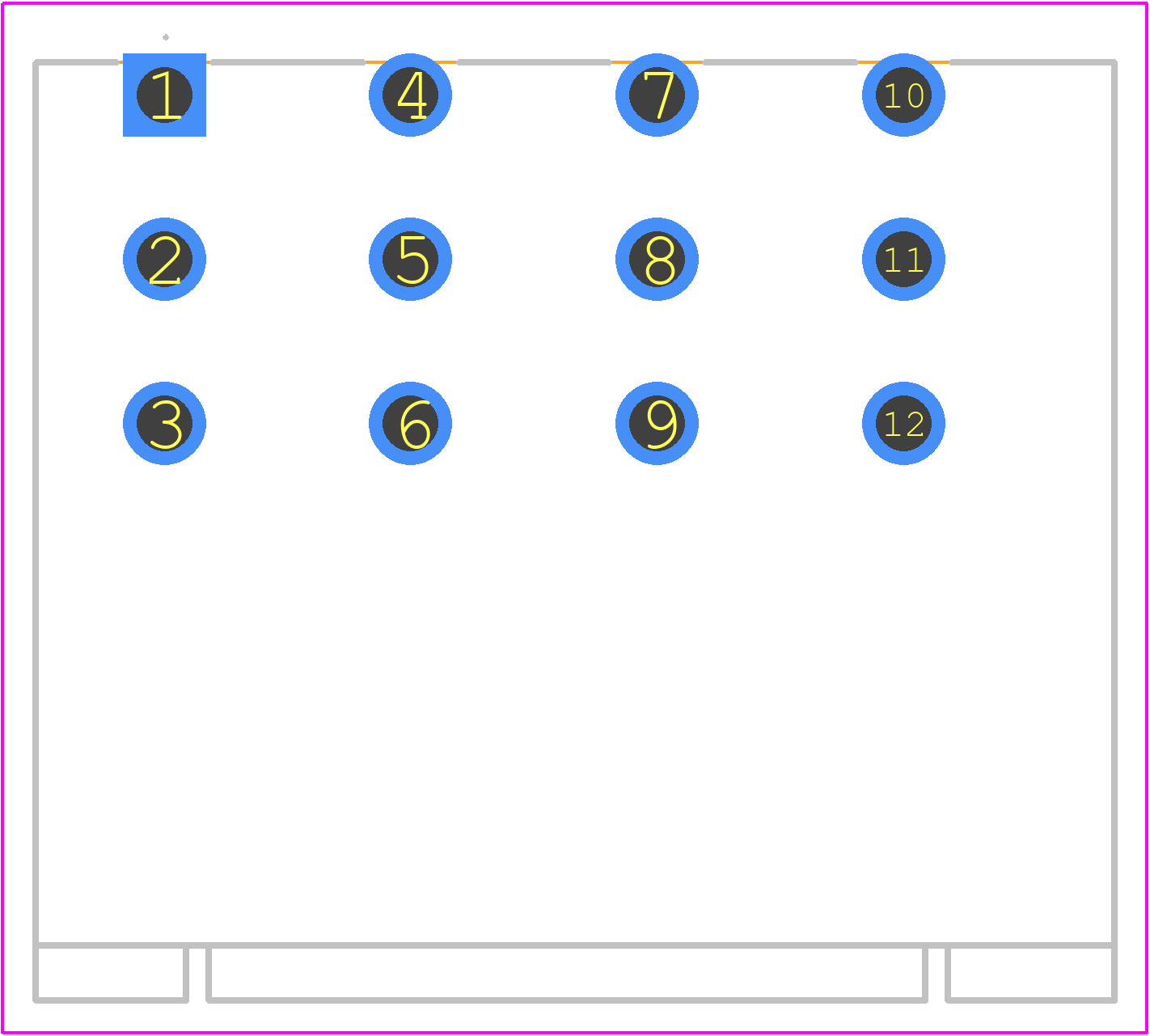

831-3624 - Wago PCB footprint - Other - Other - 831-3624-1
click to zoom
3D Models
831-3624 - Wago - 3D model - Other - 831-3624-1
click to zoom

831-3624 Details

  • Manufacturer Part Number:

    831-3624

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    50 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

831-3624 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals is 0.6 Nm to 1.2 Nm, as specified in the WAGO application notes.
  • Yes, the 831-3624 connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10g acceleration.
  • Yes, the 831-3624 connector has a rating of IP67, making it suitable for outdoor use and resistant to dust and water ingress.
  • The maximum operating temperature range for the 831-3624 connector is -40°C to 125°C, making it suitable for a wide range of industrial applications.
  • Yes, the 831-3624 connector is designed to accept stranded wire, with a wire size range of 0.5 mm² to 2.5 mm².

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

831-3624 Overview

Use the download button to access the 831-3624 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 831-3, or try a keyword search, such as Terminals and Terminal Blocks
